Shop | 4K UHD Broadcast Products | 4K UHD BNC Plugs | Precision BNC Plug Belden 1505A, 1505F,1505ANH, Image 720, HD720

Precision BNC Plug Belden 1505A, 1505F,1505ANH, Image 720, HD720

Precision BNC Plug Belden 1505A, 1505F,1505ANH, Image 720, HD720
Product image
Information
Technical
Accessories

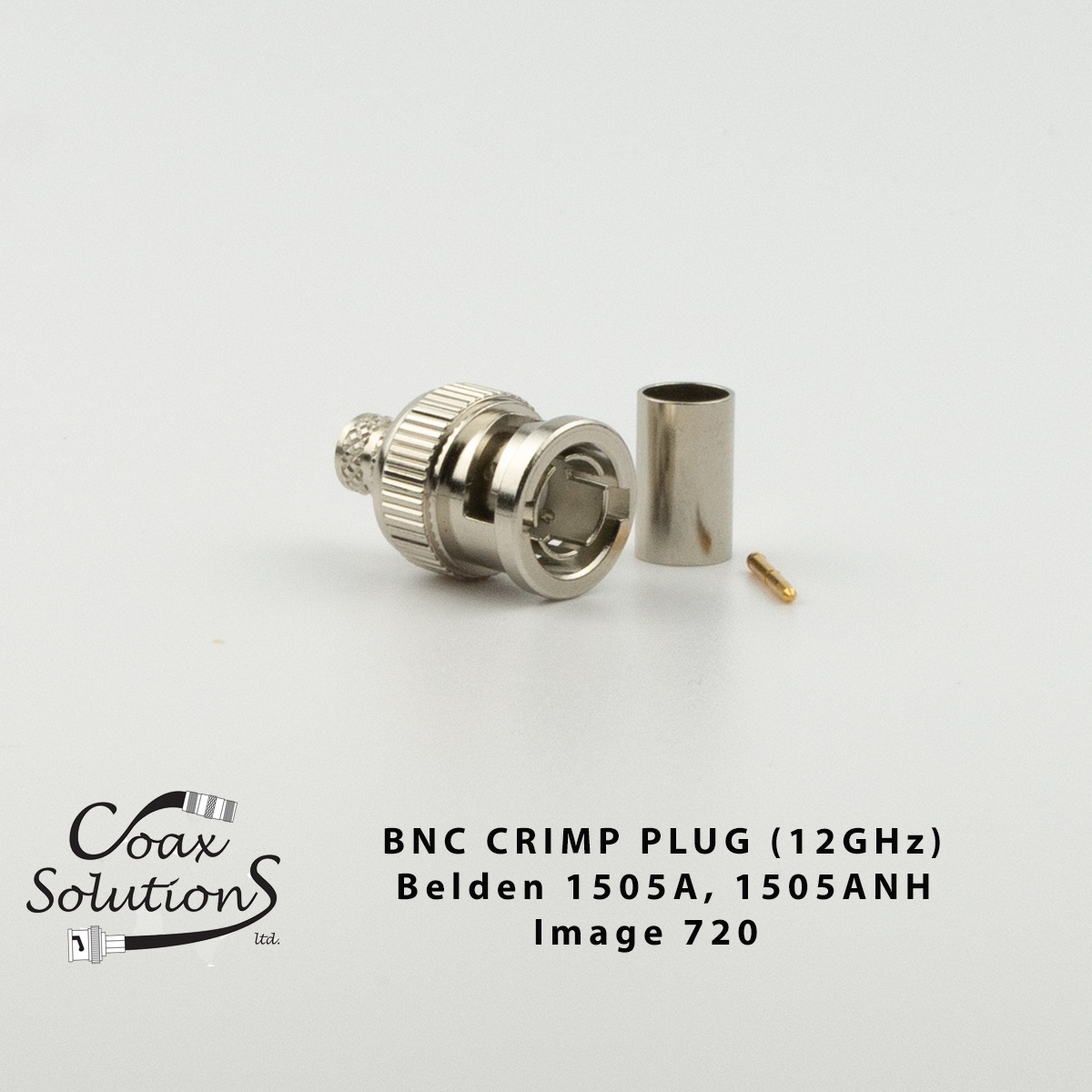

A Precision BNC Plug designed specifically for Broadcast applications, meeting the requirements of the Serial digital Interface (SDI) and related High Definition Serial digital Interface (HD-SDI) specifications.

These Precision BNC plugs offer a true 75 Ohm impedance and are suitable for use with , Belden 1505F, Belden 1505ANH, Image720, Event HD720 and other similar sized cables. They give excellent VSWR and return loss figures.

We also offer pre terminated Belden 1505A and 1505ANH patch leads and a bespoke cable assembly service for all our precision BNC plugs

  • Frequency range: DC to 12GHz
  • Impedance: 75 Ohm
  • Temperature range: -55 to +85 Deg C
  • Working voltage: 500V RMS maximum
  • Body: Zinc Alloy, Nickel plated
  • Coupling nut: Zinc alloy, Nickel plated
  • Dielectric: Delrin
  • Ferrule: Brass, Nickel plated
  • Pin: Brass, Gold plated

Suitable cables: Belden 1505A, Belden 1505F, Belden 1505ANH, Image720, Event HD720 and similar size alternatives.

Stock code BNC1050082HD
Contact Hex 1.07mm (Sq)
Ferrule Hex 6.48mm
Crimp ToolCRT1021
Cable TypeBelden 1505A, 1505F, Image 720, HD720
Impedance75 Ohm
Body PlatingNickel
Contact PlatingGold
InsulatorDelrin
Frequency RangeDC-12GHz
Quantity:Increase QuantityDecrease Quantity
£1.10
