RG59 (CCA)-Cut lengths

Description

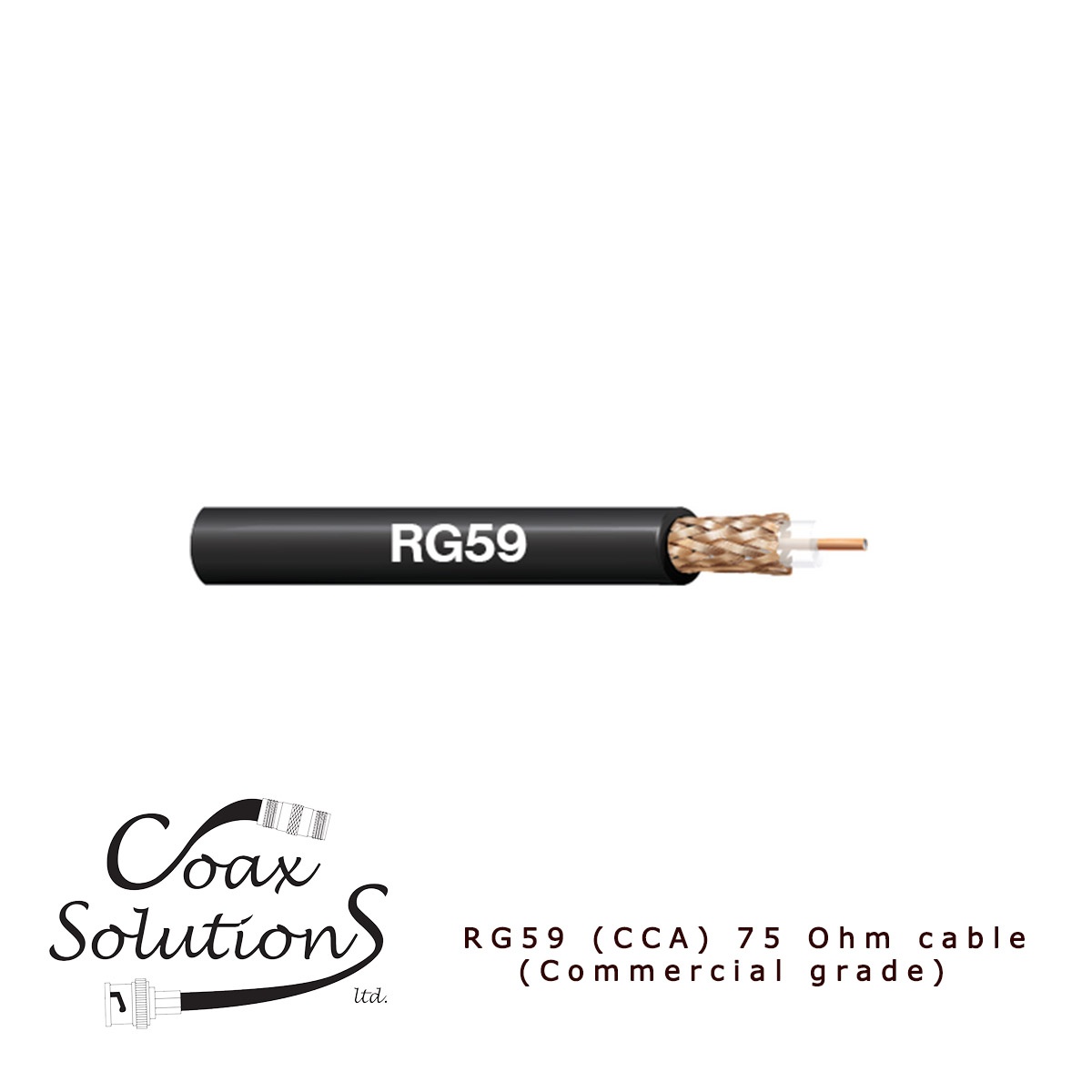

RG59 (CCA) Flexible commercial grade ,75 Ohm coax cable

Supplied as cut lengths (min 1M)

Mechanical Characteristics & Materials

Inner conductor: 1/0.58mm Copper Clad Steel

Dielectric: Solid PE insulation (3.70mm)

Screen 1: Copper Clad Aluminium

Sheath: Black PVC (6.10mm)

Electrical Characteristics

DC Resistance inner conductor @20Deg C   26.10 Ohm/Km

Characteristic impedance: 75+/- 5 Ohm

Capacitance: 67pF/m (nominal)

Velocity ratio: 0.66

Attenuation (dB 100m @20 Deg C)             10MHz       <5.07

                                                                     200MHz     <16.65

                                                                     400MHz     <23.90

                                                                     800MHz     <36.41

                                                                   1000MHz     <41.53

Typical RG59 CCA Coaxial Connectors

BNC.F Type

Applications

Low power Baseband video. RF signals. Broadcast. CCTV. Composite video. Analogue video.
