 Description

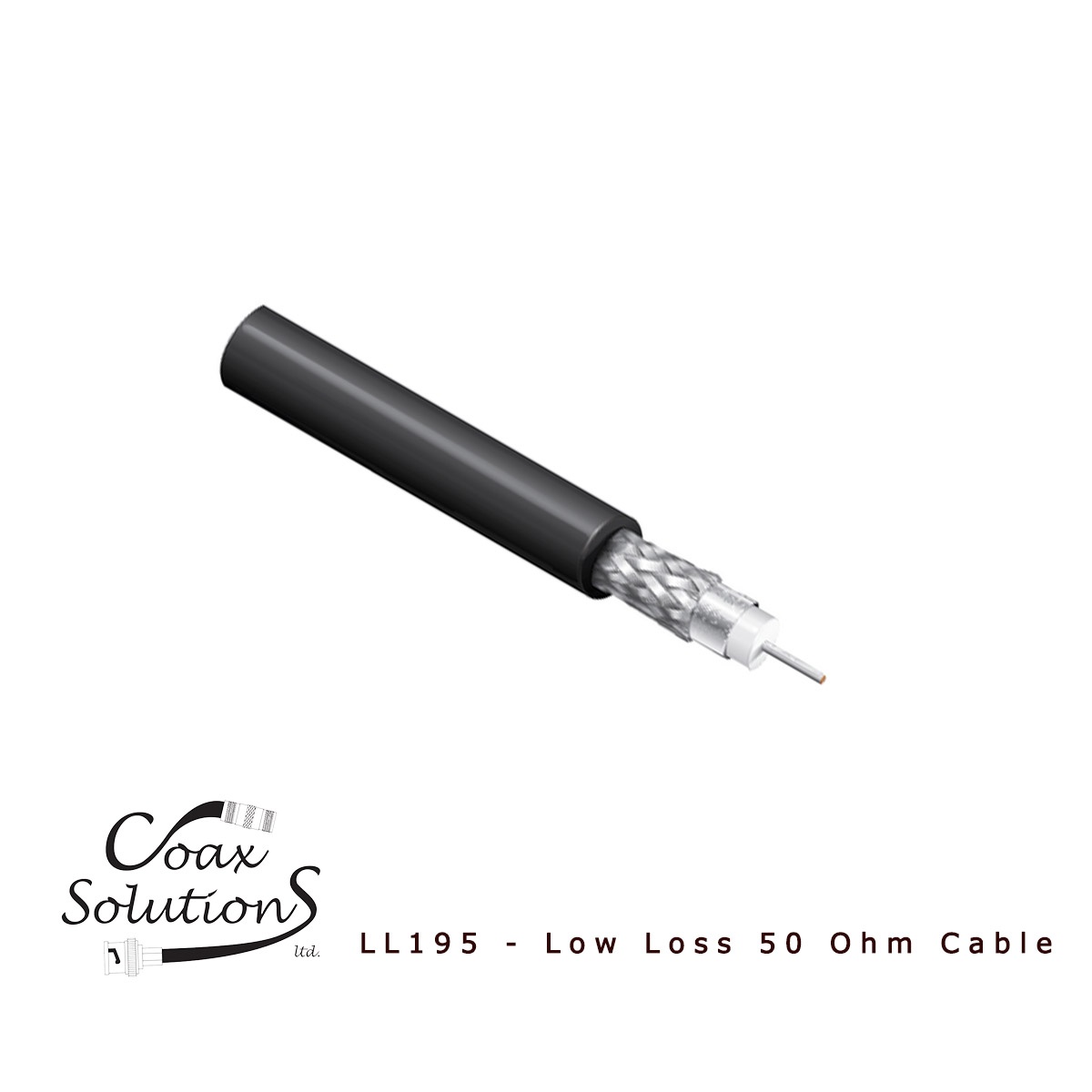

LL195 Low loss 50 Ohm coax cable. (LMR195 Equivalent cable)

Available as cut lengths (min 1M)

Mechanical Characteristics & Materials

Inner conductor: 0.94mm plain Copper wire

Dielectric: Foam Polyethylene insulation (2.8mm)

Screen 1: Bonded Aluminium Polyester Foil Tape

Screen 2: Tinned Copper Wire braid (Coverage >90%)

Sheath: PE or LSNH (4.90mm)

Electrical Characteristics

Characteristic impedance: 50+/- 3 Ohm

Capacitance: 83pF/m (nominal)

Velocity Ratio: 0.85

Attenuation (dB 100m @20deg C)

                                                                       50MHz       <8.4

                                                                     150MHz      <14.6

                                                                      220MHz     <17.7

                                                                      450MHz     <25.5

                                                                      900MHz     <36.5

                                                                     1500MHz    <47.7

                                                                     1800MHz    <52.5

 Return Loss:                                               5-470MHz    >/= 20

                                                                470-1000MHz   >/= 18

Environmental

Storage/Operating Temperature: -15Deg C to +70deg C

Minimum installation Temperature: -5deg C

Typical Low Loss 195 Coaxial Connectors

BNC. TNC. N TYPE. SMA.

Applications

GPS. WLAN. Cellular Communications. Telecoms / Data wiring. Antenna. WIFI.

Links

Low Loss 195 Cable Assemblies

Low Loss 195 Coaxial Connectors

Low Loss 195 Crimp Tools

Low Loss 195 Strain Relief Boots

Stock code LL195-M
Cable TypeLow Loss 195
Impedance50 Ohm
ConductorPlain Copper Wire (0.94mm)
DielectricFoam Polyethylene Insulation (2.80mm)
Screen (1)Bonded Aluminium Polyester Foil tape
Screen (2)Tinned Copper Wire Braid
JacketLSNH
Reel SizeCut Lengths
Quantity:Increase QuantityDecrease Quantity
£1.30
