Description

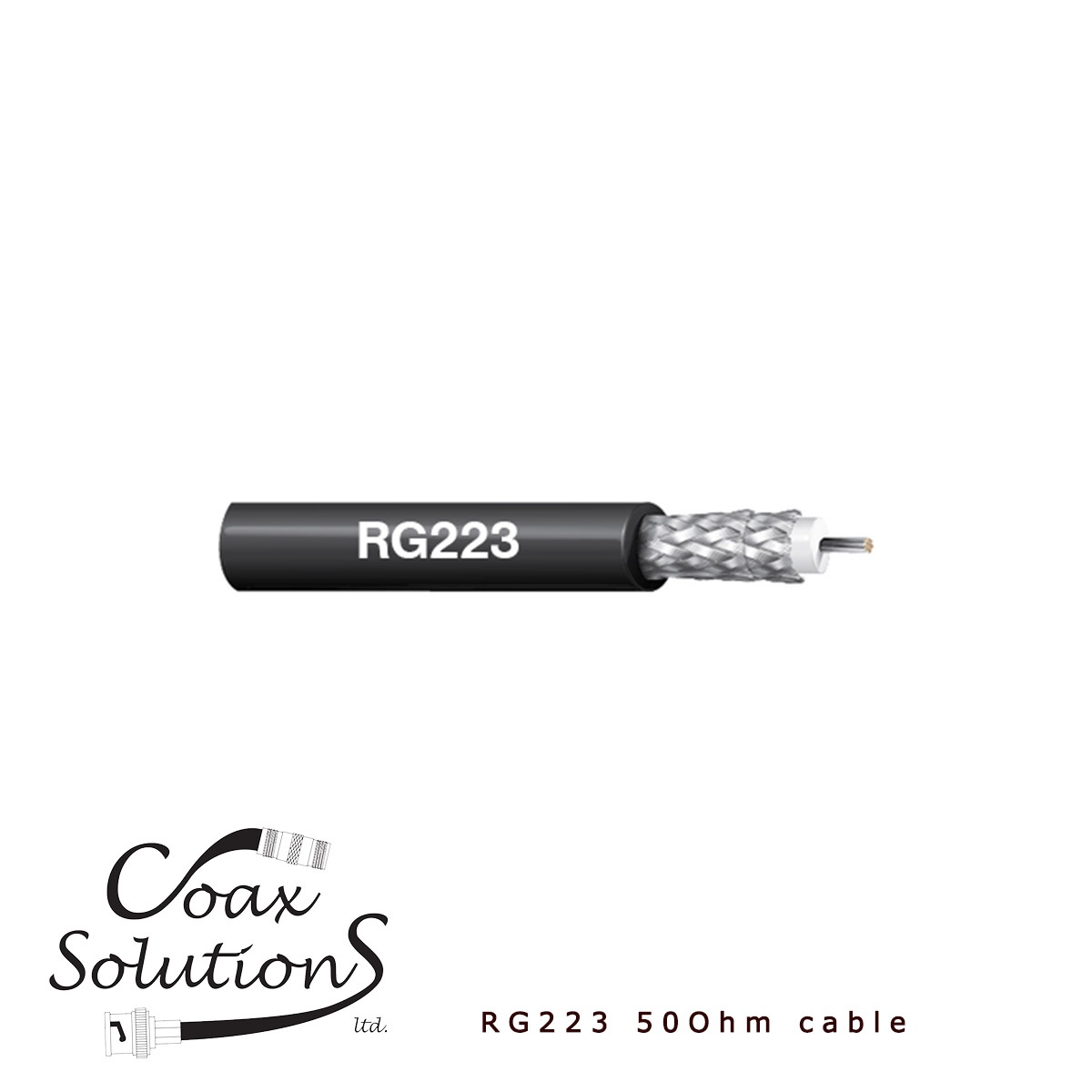

RG223 Flexible Low Loss 50 Ohm coax cable, with Double screen.

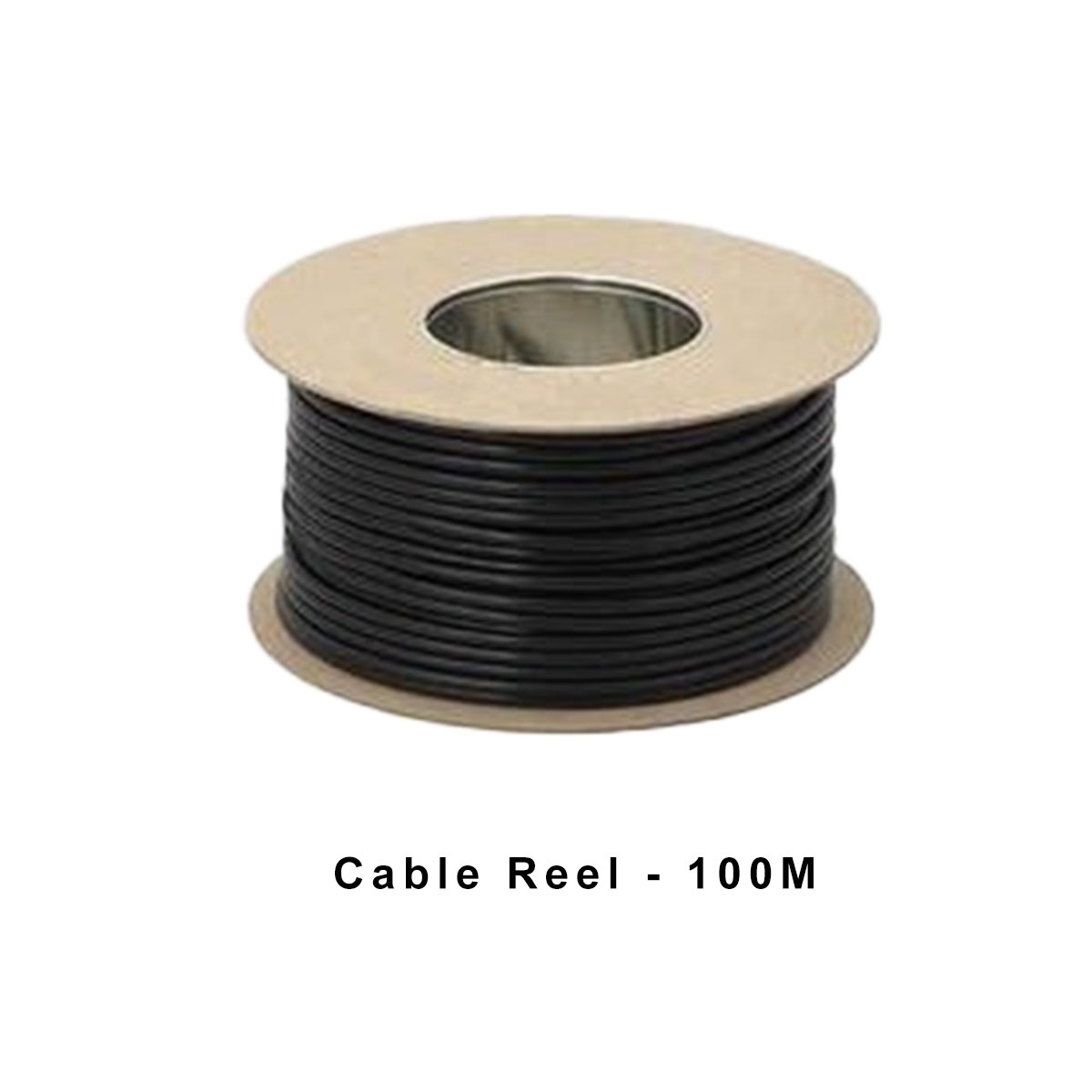

Supplied on 100M Reel

Mechanical Characteristics & Materials

Inner conductor: 1/0.9mm Silver plated Copper

Dielectric: Polyethylene Insulation (2.95mm)

Screen 1: Silver plated copper braid (coverage >92%)

Screen 2: Silver plated copper braid (coverage >92%)

Sheath: Black PVC (5.40mm)

Electrical Characteristics

DC Resistance inner conductor @20Deg C   <29.4 Ohm/Km

Characteristic impedance: 50+/- 3 Ohm

Capacitance: 105 pF/m (nominal)

Velocity ratio: 0.695

Attenuation (dB 100m @20 Deg C)             50MHz       <10.50

                                                                     400MHz     <31.50

                                                                     1000MHz   <52.50

Environmental

Storage/Operating Temperature: -15Deg C to +85Deg C

Minimum Installation Temperature: -5Deg C

Typical RG213 Coaxial Connectors

BNC. TNC. N TYPE. UHF. SMA. FME

Applications

Low Loss General HF & VHF Antenna connections. Data transmission. Commercial Broadcast. Telecoms.

Links

RG223 Cable Assemblies

RG223 Coaxial Connectors

RG223 Crimp Tools

Stock code RG223U-100M
Cable TypeRG223
Impedance50 Ohm
ColourBlack
ConductorAgCu 1/0.9mm
DielectricPE 2.95mm
Screen (1)AgCu
Screen (2)AgCU
JacketPVC 5.40mm
Reel Size100M
Quantity:Increase QuantityDecrease Quantity
£164.29
