4K UHD patch lead - Belden 4694R

4K UHD patch lead - Belden 4694R
Product image
Information
Technical
Accessories

Introduction

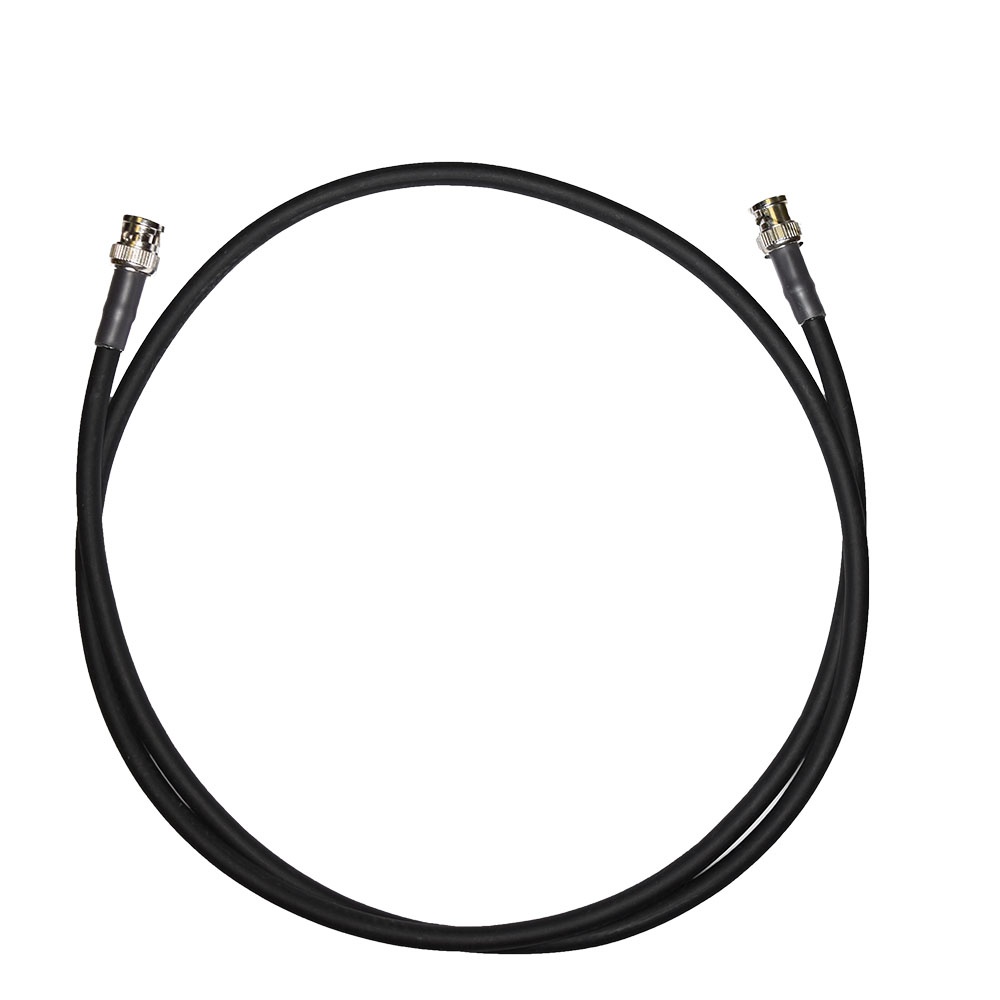

4K UHD patch cables using BELDEN 4694R (12GHz) cable and precision BNC plugs. These 4K UHD patch leads are assembled at our Harlow, Essex assembly under our proven quality control system.

Our precision "true" 75Ohm 4K UHD BNC connectors are suitable for applications up to 12GHz.

Application

1.      At 3Gb/s

SMPTE ST425-4       Single link    3Gb/s

SMPTE ST2081-1     Dual link      6Gb/s

SMPTE ST2082-1     Quad link     12Gb/s

SMPTE ST2083-1     Octal link     24Gb/s

2.      At 6Gb/s

SMPTE ST2081-1     Single link     6Gb/s

SMPTE ST2082-1     Dual link       12Gb/s

SMPTE ST2082-1    Quad link       24Gb/s

3.      At 12Gb/s

SMPTE ST2082-1    Single link    12Gb/s

SMPTE ST2083-1    Dual link      24Gb/s

Recommended maximum transmission distance

Distance is based on 40dB loss at ½ clock frequency according to Belden data sheets

At 3Gb/s max distance 164M

At 6Gb/s max distance 114M

At 12Gb/s max distance 78M

Options

Coloured strain relief boots (standard is Black)

Cable labels

Cable length

Deployable reel

Technical information

Belden 4694R data sheet  4694R data sheet 31-1-20.pdf

Belden Recommended transmission distance table   digital-video-distance-chart-24-4-2019.pdf

Summary

  • 4K UHD patch lead
  • Belden 4694R 12GHz precision video cable
  • Precision "true" 75Ohm 4K UHD BNC connectors
  • Black Heat Shrink strain relief
  • Options - cable length, labels, coloured boots, deployable reel
Stock code CAS1562
Cable TypeBelden 4694R
Impedance75 Ohm
Frequency RangeDC-12GHz
Connector 'A'BNC PLUG 4K UHD
Connector 'B'BNC PLUG 4K UHD
ColourBlack
Options
  £11.87
