Inflatable Antenna - Marine

Inflatable Antenna - Marine
Product image
Product image
Product image
Product image
Information
Technical
Accessories

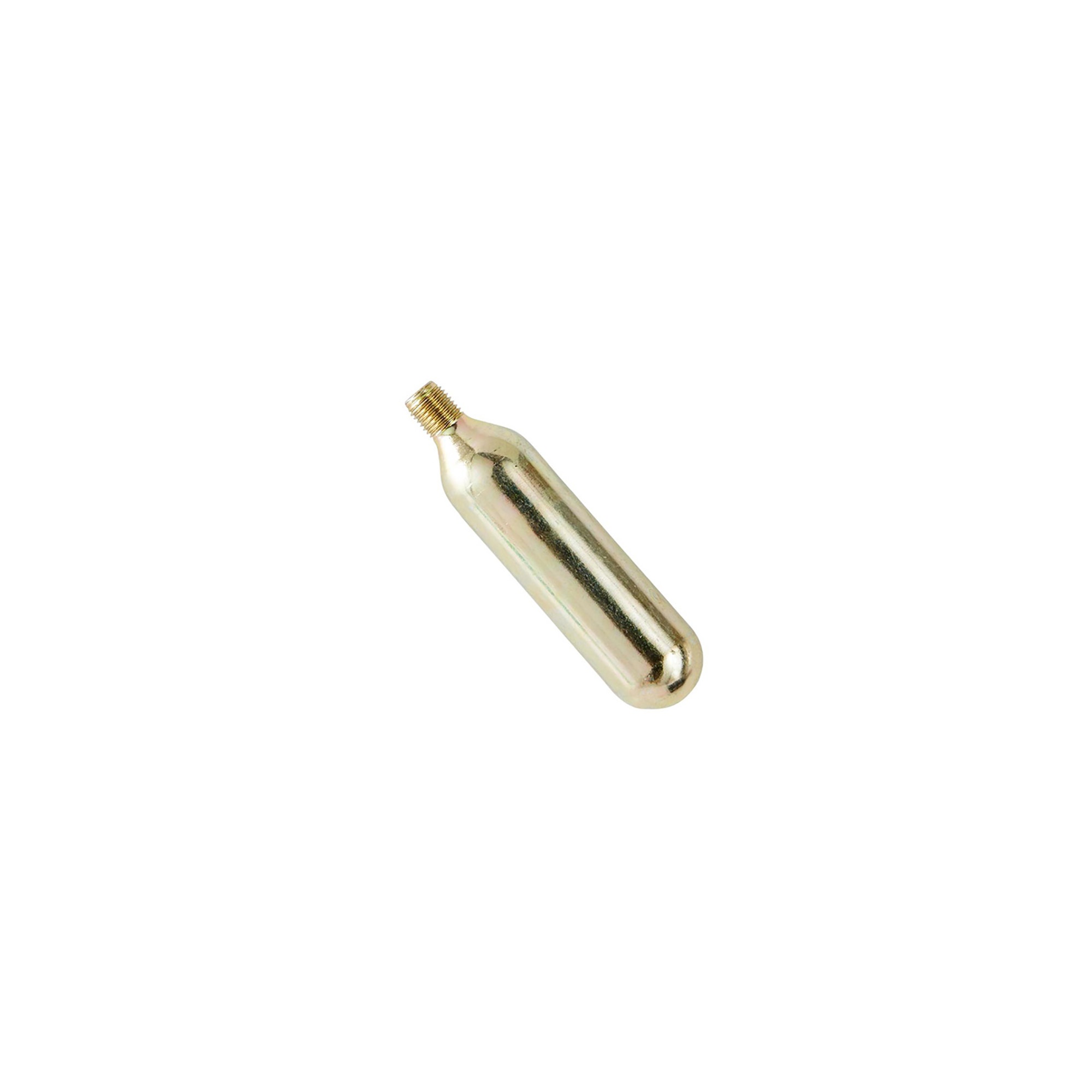

 The GALAXY INFL8-5 by Shakespeare is an inflatable antenna that can be rapidly deployed via a CO2 cartridge or a manual inflation tube. The INFL8 antenna inflates to 1.6M to offer a full 3db antenna, with a range of up to 3 times greater than any existing helical emergency antenna.

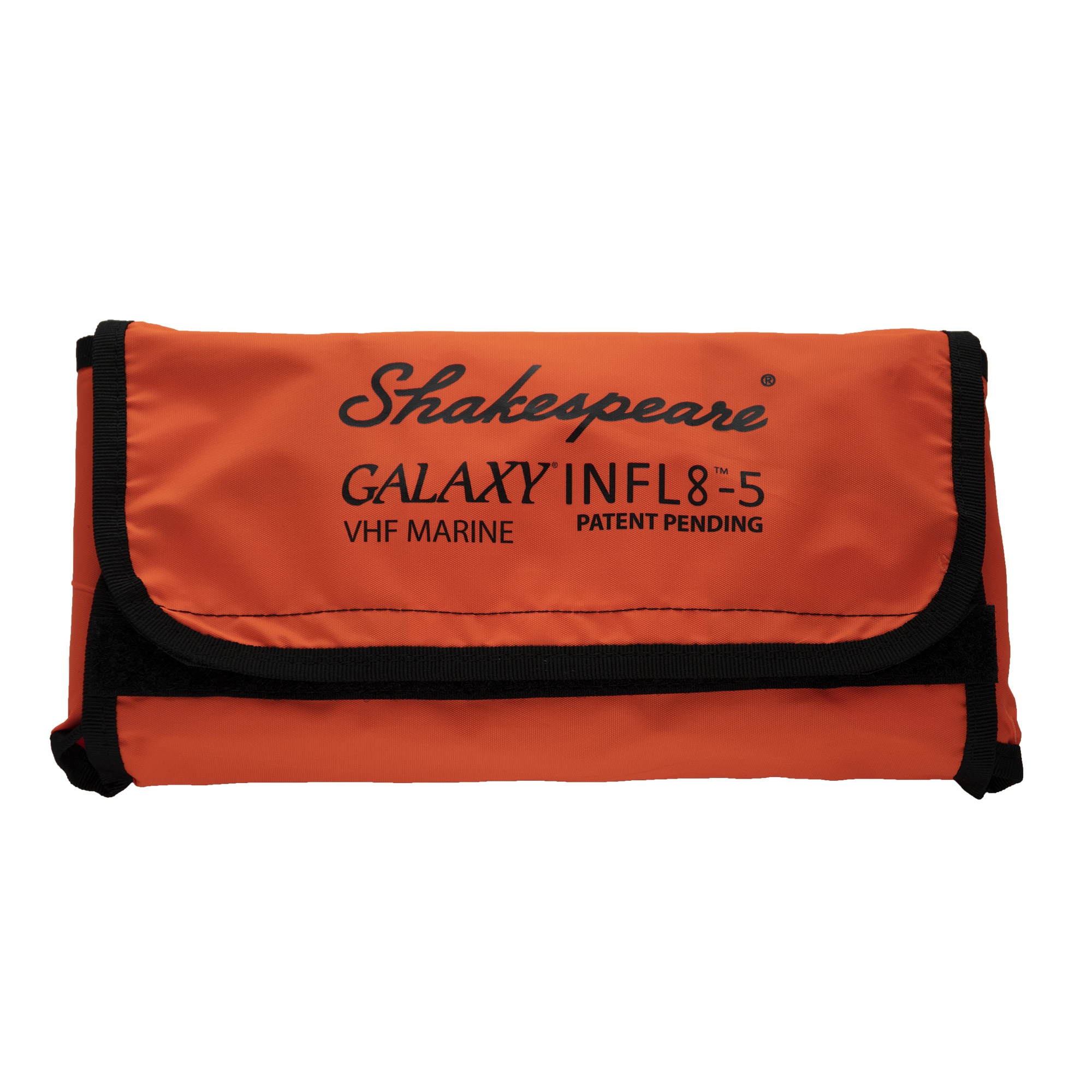

After use, the INFL8 can be deflated and stowed away safely in its compact, visible storage bag until required again.

The antenna can be mounted with its hook and loop straps allowing for quick and easy installation in any weather to stanchions, outriggers or other vertical structures on board.

The antenna also features grommets on the top and bottom to facilitate hanging and securing to spreaders, masts, hard tops and other structures even in case the inflatable bladder becomes damaged.

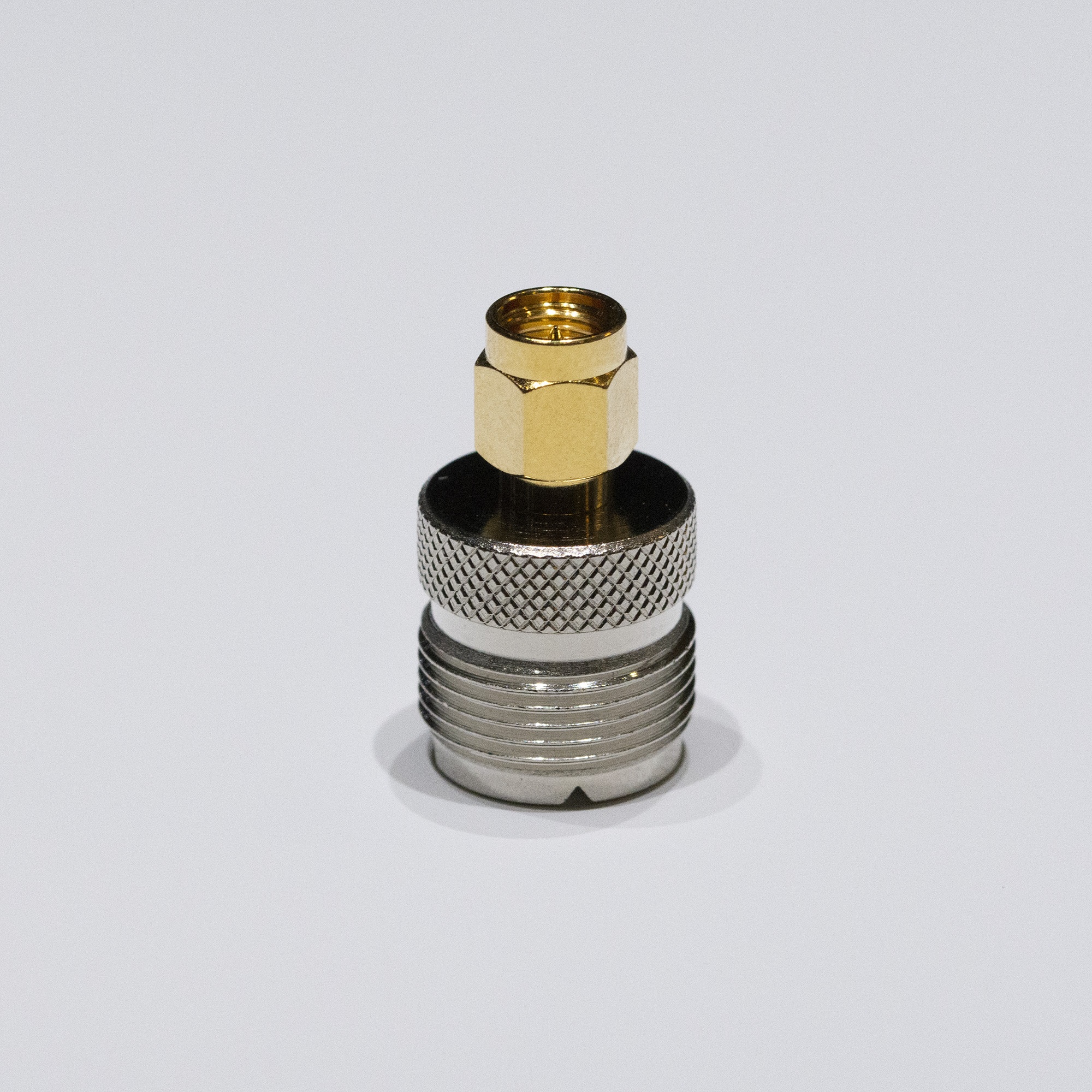

The connectors included in the package allow for versatile connection options. The pre-soldered PL-259 connector allows connection to a Fixed VHF directly or a handheld via the included SMA Adaptor.

  • 1.6M Inflatable marine emergency antenna
  • VHF 156MHz to 162Mhz
  • 3db antenna
  • compact when stowed
  • Connection by standard PL259 plug
  • RG174 coax cable
  • PL259 - SMA adapter included in kit

Further Information on the Shakespeare INFL8 Inflatable Emergency Antenna

Shakespeare INFL8 Leaflet          Shakespeare Galaxy INFL8 Product Information Sheet.pdf

Coax Solutions Ltd Data Sheet    Data sheet - INFL8-MARINE.pdf

Shakespeare INFL8 Product video here

Stock code INFL8-MARINE
Cable TypeRG174
Impedance50 Ohm
Frequency Range156MHz-162MHz
Connector 'A'PL-259 Male
Quantity:Increase QuantityDecrease Quantity
£124.99
