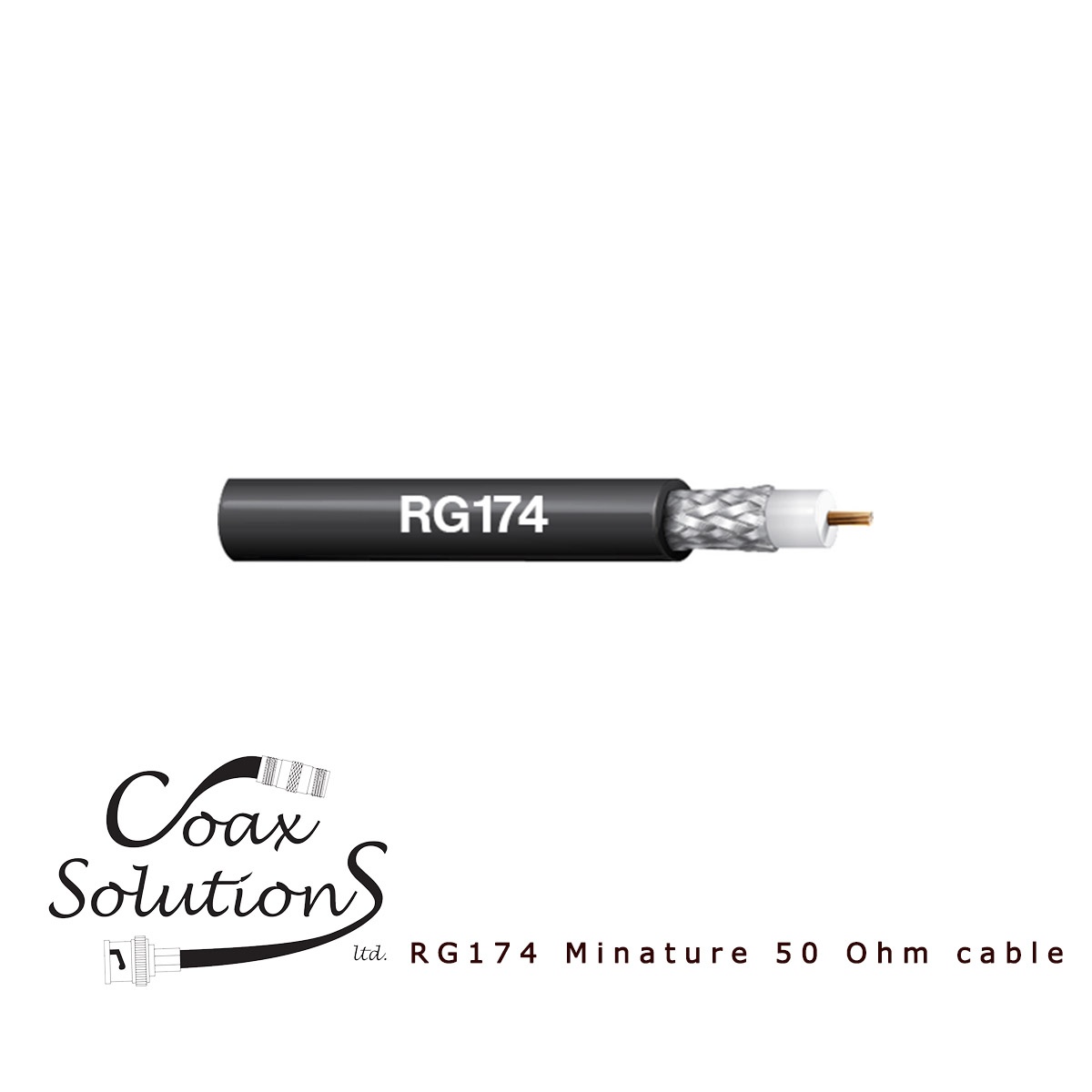

RG174 Flexible Miniature 50 Ohm coax cable.
Supplied on 500m reels
Mechanical Characteristics & Materials
Inner conductor: 7/0.16mm Copper Covered Steel
Dielectric: Solid Polyethylene Insulation (1.52mm)
Screen: Tinned Copper wire braid
Sheath: Black PVC (2.80mm)
DC Resistance inner conductor @20Deg C <317 Ohm/Km
Characteristic impedance: 50+/- 3 Ohm
Capacitance: 53pF/m (nominal)
Velocity ratio: 0.66
Attenuation (dB 100m @20 Deg C) 50MHz <21.3
Storage/Operating Temperature: -15Deg C to +70Deg C
Minimum Installation Temperature: -5Deg C
Typical RG174 Coaxial Connectors
BNC. TNC. N TYPE. FME. UHF.
SMA. SMB. MCX. MMCX. SSMB. SMC. MINI UHF. SSMB
GPS. WLAN. Cellular Communications. Telecoms / Data wiring.
RG174 Cable Assemblies
RG174 Coaxial Connectors
RG174 Crimp Tools
RG174 Strain Relief Boots
