Belden 4855R + CAT6 Hybrid 4K UHD Patch Cable

Belden 4855R + CAT6 Hybrid 4K UHD Patch Cable
Product image
Product image
Information
Technical
Accessories

Introduction

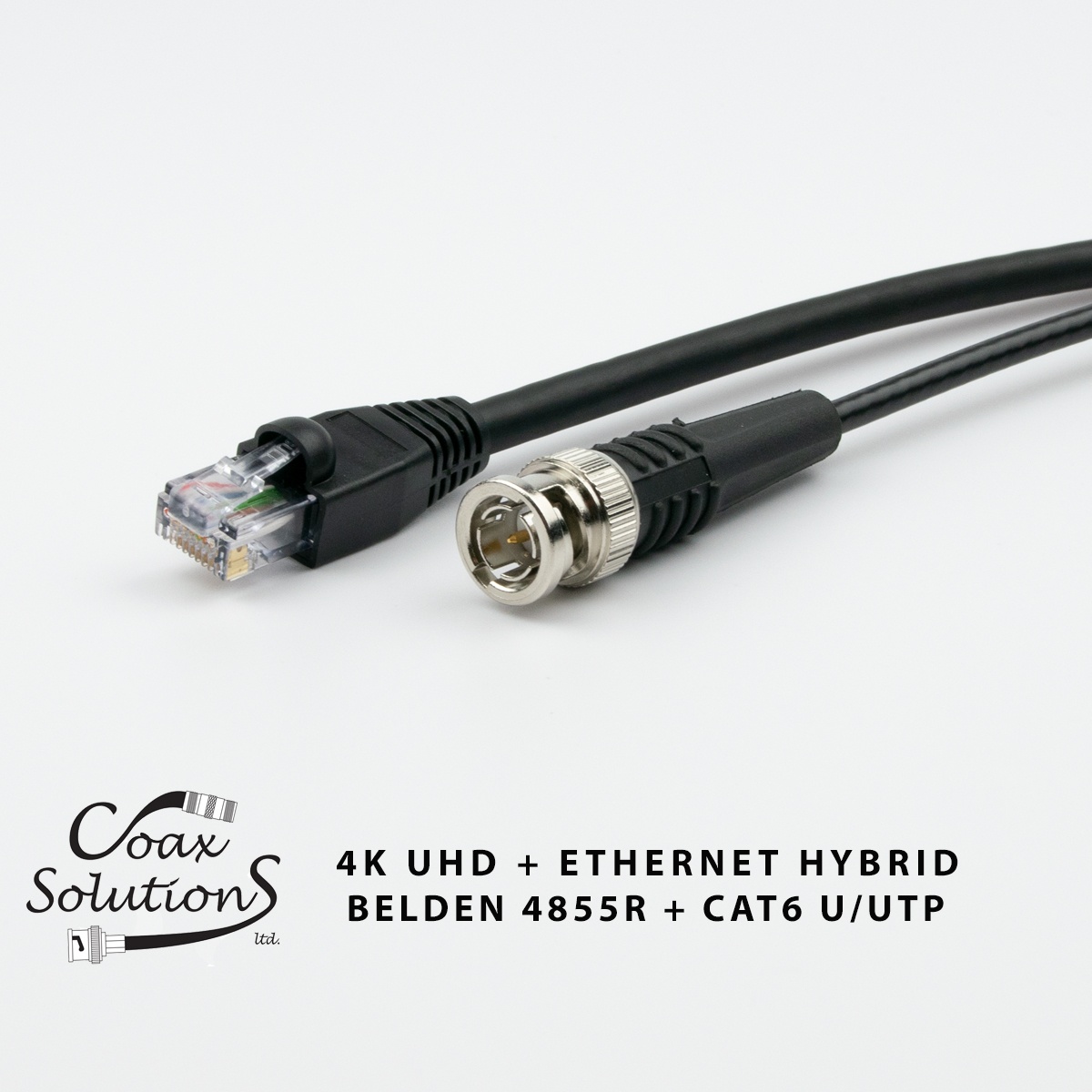

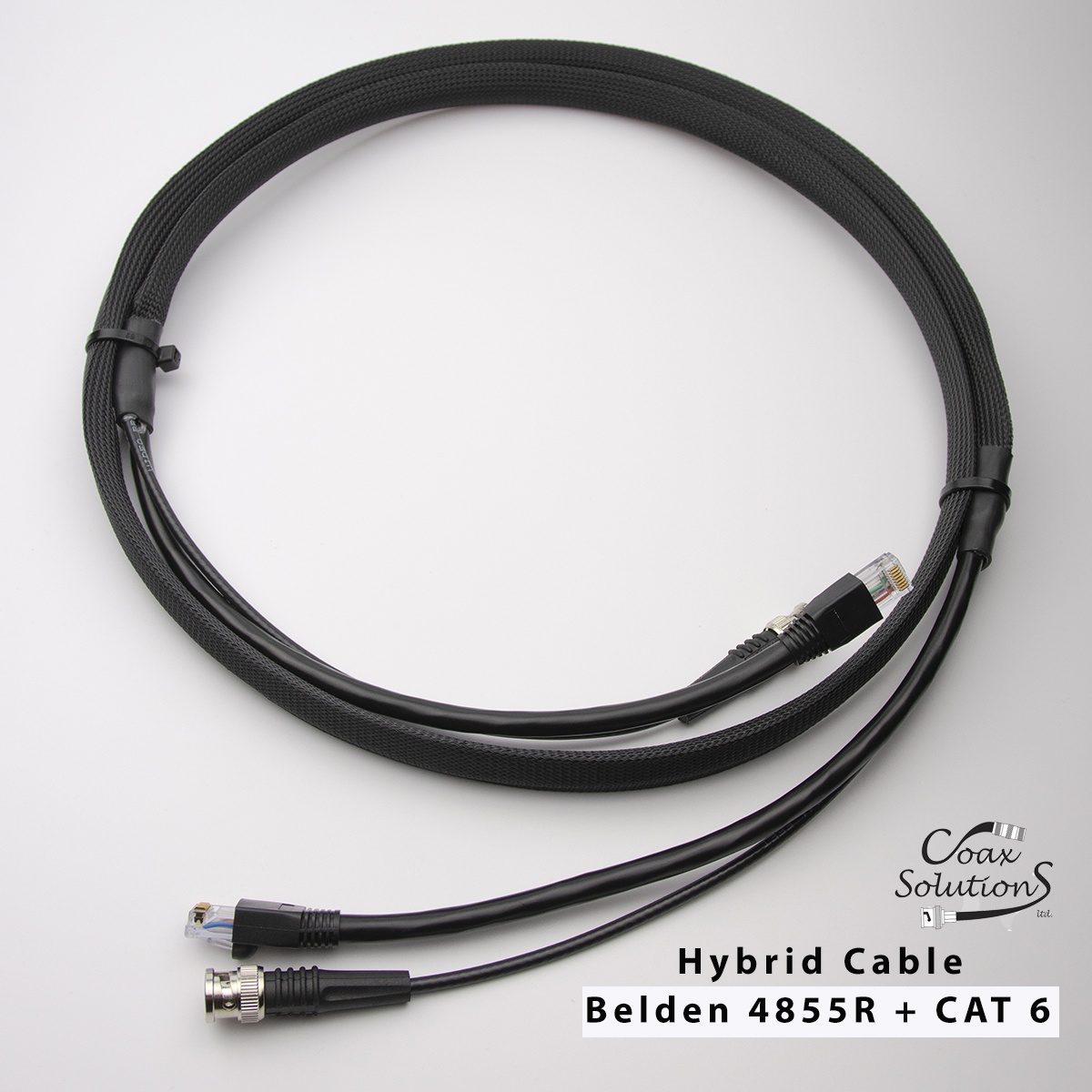

Hybrid Cable assembly - 1 x Belden 4855R 4K UHD 12GHz video cable, terminated with precision 4K UHD BNC plugs plus 1 x CAT6 U/UTP Ethernet cable terminated with true CAT6 RJ45 plugs and flush snag-less boots.  The 2 cables are held together within a Halogen free braided sleeve, leaving 250mm tails both ends. Tail length can be specified at the time of ordering to suit your application.

The CAT6 U/UTP cable uses a 23awg solid conductor and has a Black LSZH jacket. For cables up to 50M we can also supply a CAT6 U/UTP  24awg stranded conductor option allowing more flexibility.

Application

Video Streaming, Camera interface, Distribution amplifier, network switch etc

Precision video cable - SMPTE ST 2081-1 (includes 6GHz single link)

                                       SMPTE ST 2082-1 (includes 12GHz single link)

                                          SMPTE ST 2083-1 (includes 24GHz dual link)

Ethernet cable -   CAT6 up to 1G Ethernet ANSI/TIA-568-C.2, ISO/IEC 1801, BS EN 50173

Technical Information

Belden 4855R Data Sheet     4855R data sheet 31-1-20.pdf

CAT6 U/UTP    Data sheet     CAT6 U-UTP Solid cable.pdf

Summary

  • Hybrid (Siamese) Precision 4K UHD video + CAT6 Ethernet
  • Belden 4855R HD-SDI video cable with 4K UHD BNC plugs
  • CAT6 U/UTP 23awg Ethernet cable with CAT6 RJ45 plugs and snag-less boots
  • Halogen Free braided sleeve

Options

  • Up to 50M length - CAT6 U/UTP 24awg stranded cable for flexibility
  • Tail length can be adjusted to suit application. - specify when ordering
  • Bespoke multi coax or multi ethernet variants - contact our sales team.
Stock code CAS1713
Cable TypeBELDEN 4855R + CAT6 U/UTP
Connector 'A'BNC PLUG 4K UHD
Connector 'B'CAT6 RJ45
ColourBLACK
Options
  £89.04
Increase Quantity
Decrease Quantity
  £114.04
Increase Quantity
Decrease Quantity
  £139.00
Increase Quantity
Decrease Quantity
  £163.95
Increase Quantity
Decrease Quantity
  £203.19
Increase Quantity
Decrease Quantity
  £214.95
Increase Quantity
Decrease Quantity
  £284.20
Increase Quantity
Decrease Quantity
  £338.20
Increase Quantity
Decrease Quantity
  £392.22
Increase Quantity
Decrease Quantity
  £446.22
Increase Quantity
Decrease Quantity
  £500.24
Increase Quantity
Decrease Quantity
  £554.24
Increase Quantity
Decrease Quantity
  £608.26
Increase Quantity
Decrease Quantity
From £89.04
