RG59MINI-WHITE-100M

Description

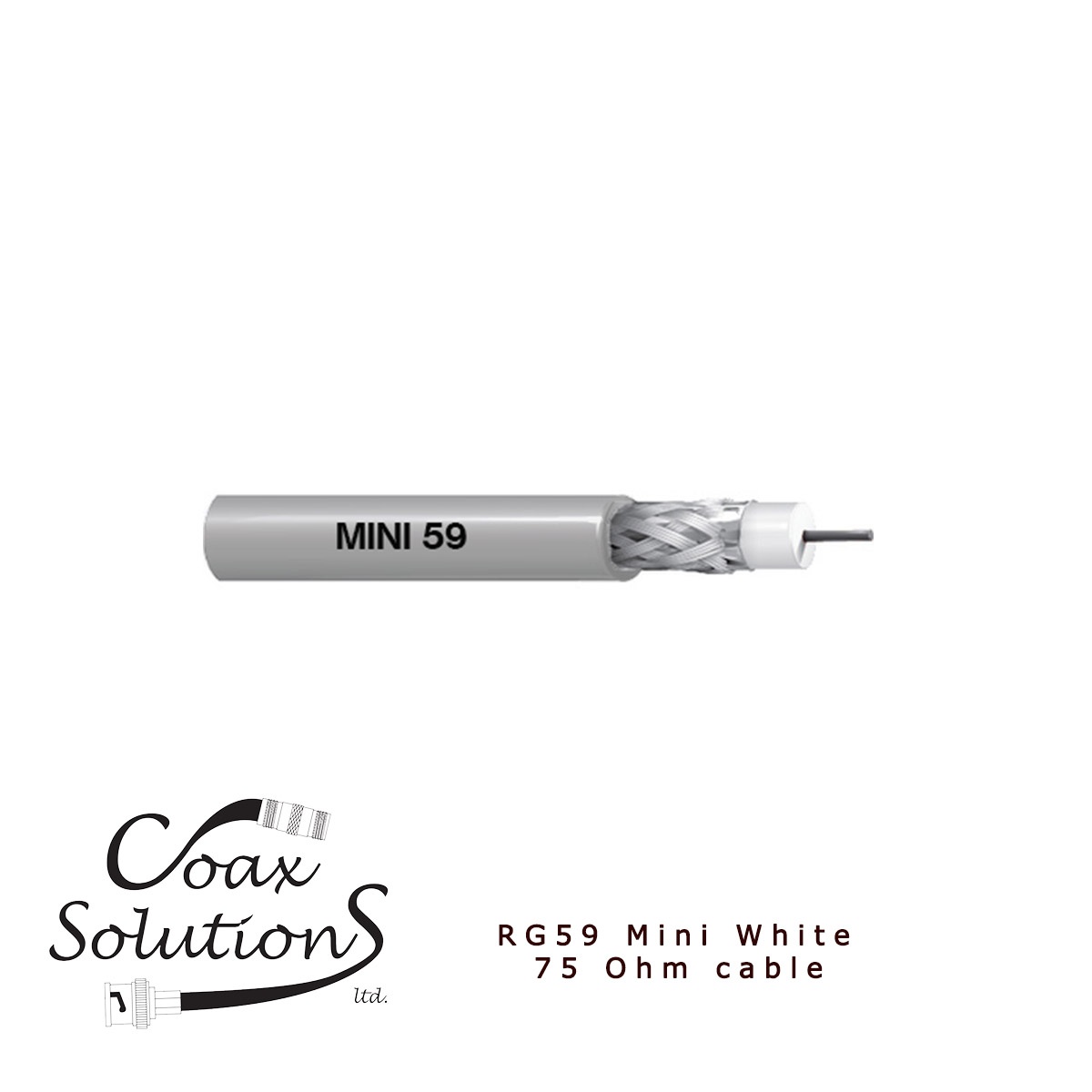

RG59 Mini White Flexible ,75 Ohm coax cable

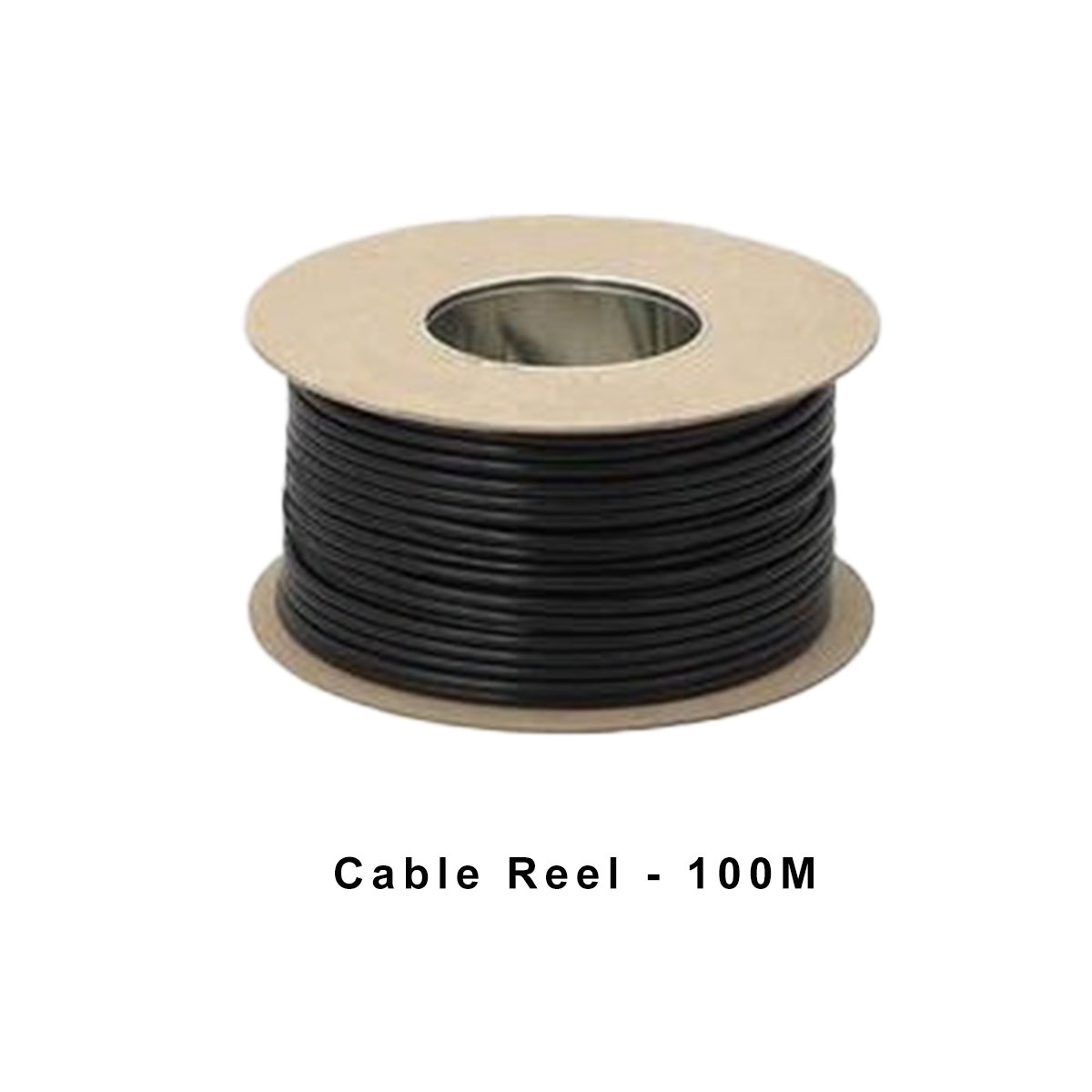

Supplied on 100M Reel

Mechanical Characteristics & Materials

Inner conductor: 1/0.41mm Copper Clad Steel

Dielectric: Gas injected PE insulation (1.90mm)

Screen 1: Bonded Aluminium foil tape (coverage 115%)

Screen 2: Tinned copper wire braid (coverage >55%)

Sheath: White PVC (3.60mm)

Electrical Characteristics

DC Resistance inner conductor @20Deg C   <352 Ohm/Km

Characteristic impedance: 75+/- 5 Ohm

Capacitance: 55pF/m (nominal)

Velocity ratio: 0.81

Attenuation (dB 100m @20 Deg C)             50MHz       <11.50

                                                                     100MHz     <15.50

                                                                      200MHz    <21.50

                                                                     400MHz     <31.50

                                                                     500MHz     <17.00

                                                                     600MHz     <37.00

                                                                     800MHz     <44.50

                                                                    1000MHz    <51.00

                                                                    1750MHz     <63.00

Environmental

Storage/Operating Temperature:  +70Deg C

Typical RG59 Mini White Coaxial Connectors

BNC.

Applications

Low power baseband video. RF signals. Broadcast. CCTV
