RG179 (LSOH) -100M

RG179 (LSOH) -100M
Product image
Product image
Information
Technical
Accessories

Description

RG179 LSZH (Low Smoke Zero Halogen) miniature Flexible ,75 Ohm coax cable

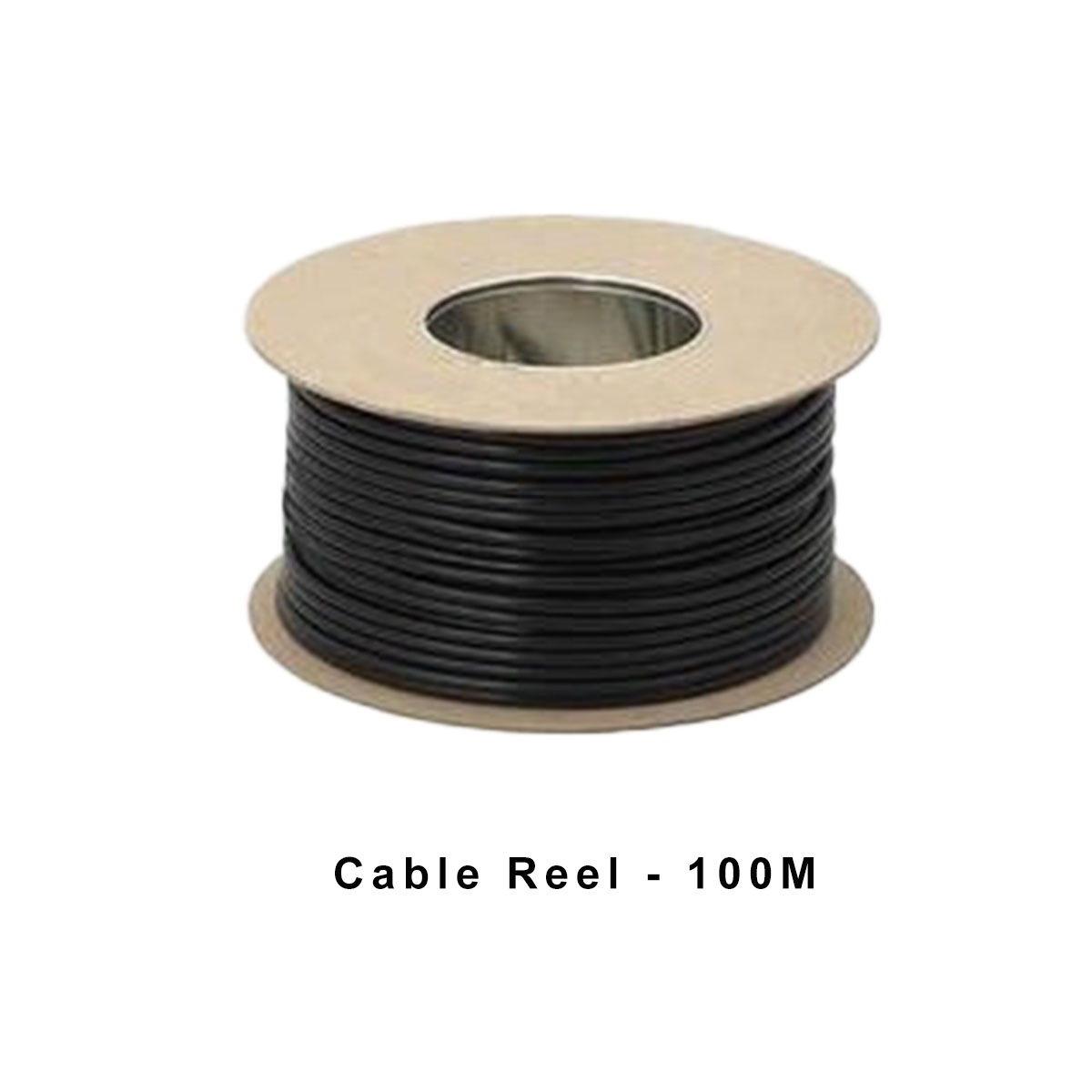

Supplied on 100M Reel

Mechanical Characteristics & Materials

Inner conductor: 1/0.36mm Copper Clad Steel

Dielectric: Gas injected PE insulation (1.60mm)

Screen: Tinned copper braid (coverage >95%)

Sheath: Black LSZH (2.70mm)

Electrical Characteristics

DC Resistance inner conductor @20Deg C   183.0 Ohm/Km

Characteristic impedance: 75+/- 3 Ohm

Capacitance: <60pF/m

Velocity ratio: 81%

Attenuation (dB 100m @20 Deg C)             10MHz       <6.00

                                                                     100MHz     <19.5

                                                                     200MHz     <28.0

Environmental

Rated Temperature:  70 Deg C

Typical RG179 LSZH Coaxial Connectors

BNC. F Type

RG 179 LSZH Applications

RF signals. Broadcast. CCTV. Medical. Security systems

Links

RG179 LSZH Cable Assemblies

RG179 LSZH Coaxial Connectors

RG179 LSZH Crimp Tools

RG179 LSZH Strain relief boots

Stock code RG179LSOH-100M
Cable TypeRG179-LSOH
Impedance75 Ohm
ColourBlack
ConductorTinned Copper 1/0.36mm
DielectricGas Injected PE (1.60mm)
Screen (1)Tinned Copper
JacketLSOH (2.70mm)
Reel Size100M
Quantity:Increase QuantityDecrease Quantity
£42.00
