Belden 1855A + CAT6 Hybrid HD-SDI Patch Cable

Belden 1855A + CAT6 Hybrid HD-SDI Patch Cable
Product image
Product image
Information
Technical
Accessories

Introduction

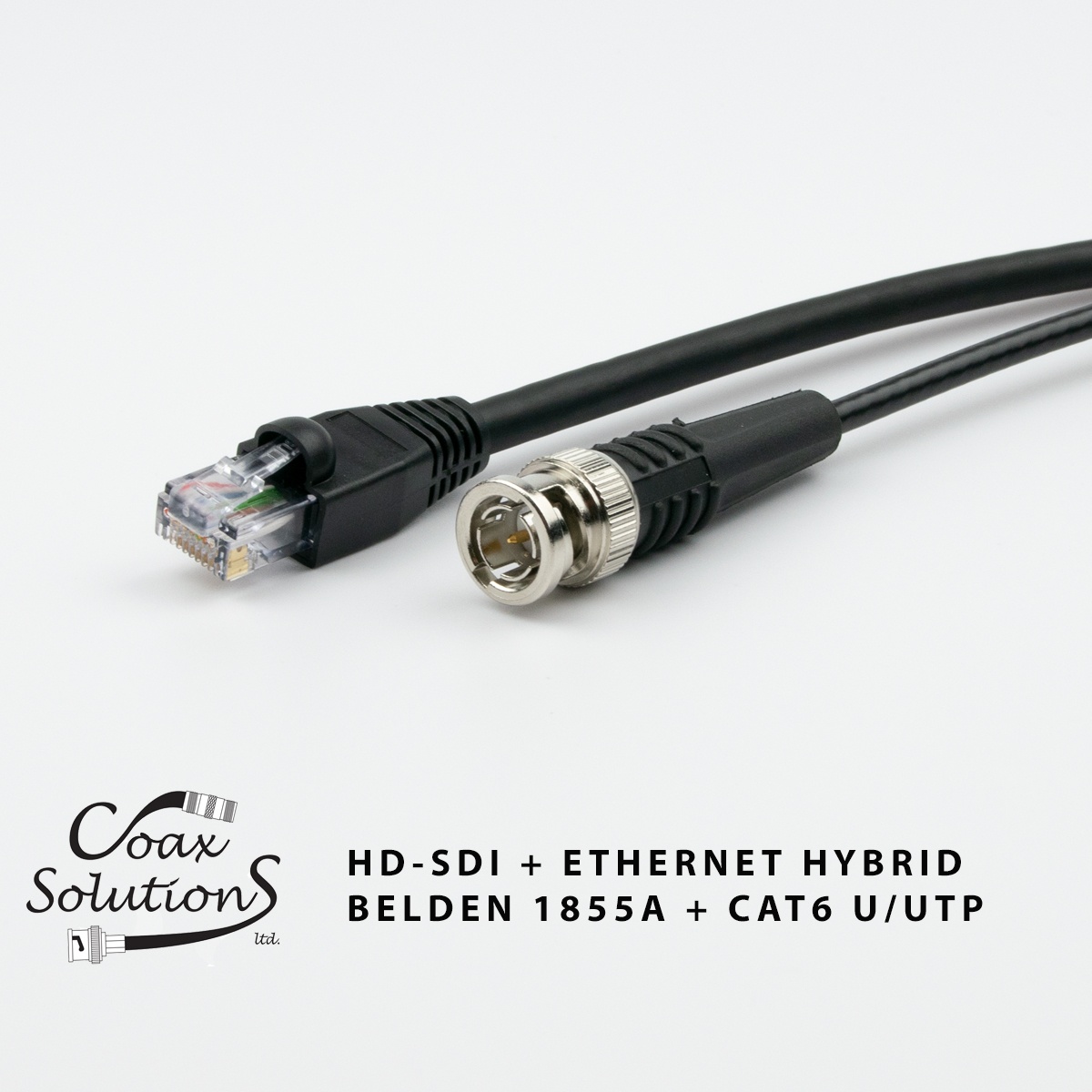

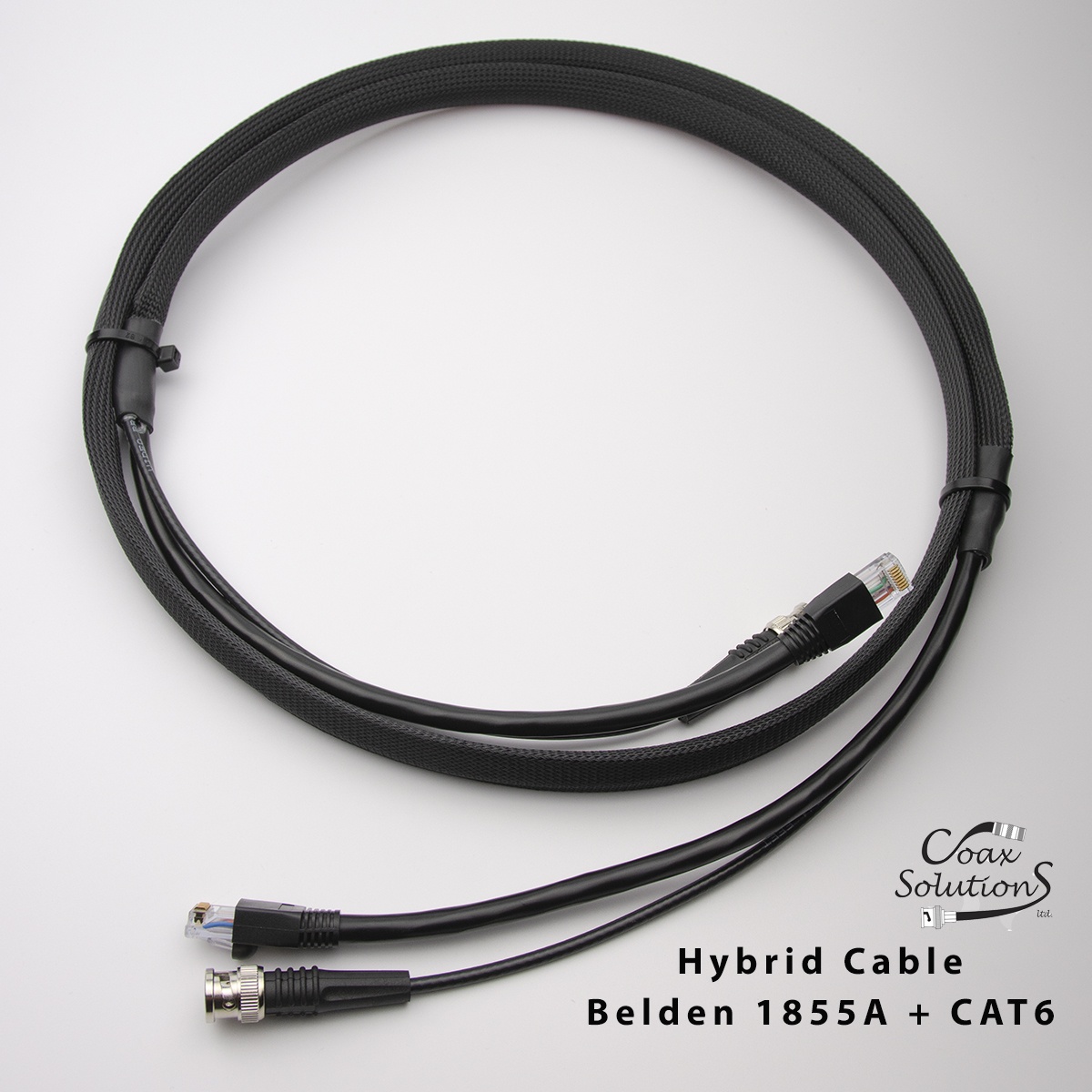

Hybrid Cable assembly - 1 x Belden 1855A precision 6GHz video cable, terminated with precision HD-SDI BNC plugs plus 1 x CAT6 U/UTP Ethernet cable terminated with true CAT6 RJ45 plugs and flush snag-less boots.  The 2 cables are held together within a Halogen free braided sleeve, leaving 250mm tails both ends. Tail length can be specified at the time of ordering to suit your application.

The CAT6 U/UTP cable uses a 23awg solid conductor and has a Black LSZH jacket. For cables up to 50M we can also supply a CAT6 U/UTP  24awg stranded conductor option allowing more flexibility.

Application

Video Streaming, Camera interface, Distribution amplifier, network switch etc

Precision video cable - SMPTE ST 292 HD-SDI 1.5GHz

                                          SMPTE ST 424 HD-SDI 3GHz

Ethernet cable -   CAT6 up to 1G Ethernet ANSI/TIA-568-C.2, ISO/IEC 1801, BS EN 50173

Technical Information

Belden 1855A Data Sheet     1855A data sheet 31-1-20.pdf

CAT6 U/UTP    Data sheet    CAT6 U-UTP Solid cable.pdf

Summary

  • Hybrid (Siamese) Precision HD-SDI video + CAT6 Ethernet
  • Belden 1855A HD-SDI video cable with HD-SDI BNC plugs
  • CAT6 U/UTP 23awg Ethernet cable with CAT6 RJ45 plugs and snag-less boots
  • Halogen Free braided sleeve

Options

  • Up to 50M length - CAT6 U/UTP 24awg stranded cable for flexibility
  • Tail length can be adjusted to suit application. - specify when ordering
  • Bespoke multi coax or multi ethernet variants - contact our sales team.
Stock code CAS1712
Cable TypeBELDEN 1855A + CAT 6 U/UTP
Connector 'A'HD-SDI BNC PLUG
Connector 'B'CAT 6 RJ45
ColourBLACK
Options
  £78.19
Increase Quantity
Decrease Quantity
  £92.50
Increase Quantity
Decrease Quantity
  £106.79
Increase Quantity
Decrease Quantity
  £121.19
Increase Quantity
Decrease Quantity
  £149.99
Increase Quantity
Decrease Quantity
  £166.08
Increase Quantity
Decrease Quantity
  £198.26
Increase Quantity
Decrease Quantity
  £230.44
Increase Quantity
Decrease Quantity
  £262.62
Increase Quantity
Decrease Quantity
  £294.80
Increase Quantity
Decrease Quantity
  £326.99
Increase Quantity
Decrease Quantity
  £359.17
Increase Quantity
Decrease Quantity
  £391.35
Increase Quantity
Decrease Quantity
From £78.19
