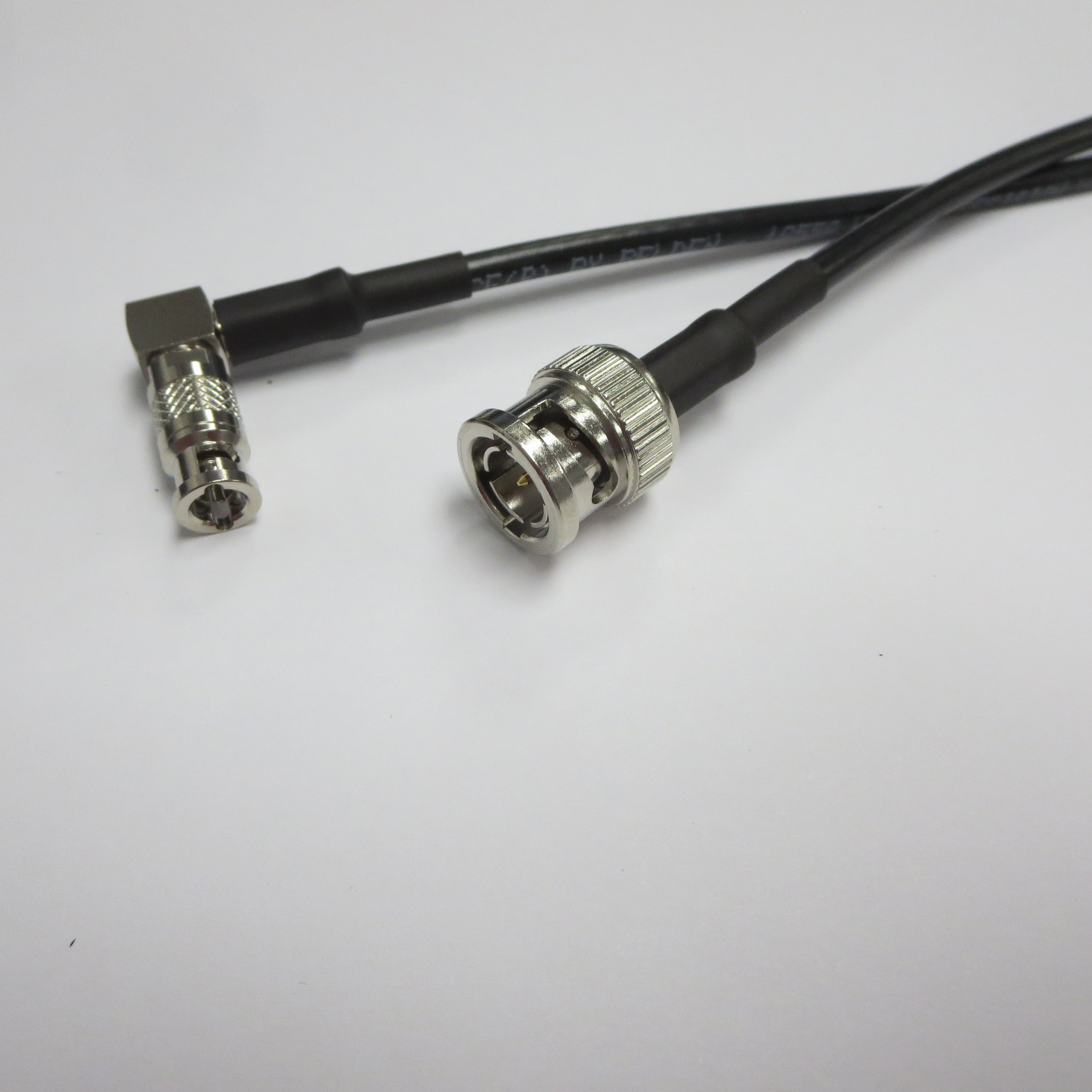

Right Angle Micro BNC to HD-SDI Plug Patch Lead

Right Angle Micro BNC to HD-SDI Plug Patch Lead
Information
Technical
Accessories

Right angle Micro BNC (HD BNC) adapter cables suitable for HD-SDI applications using Belden 1855A precision video cable (6 GHz) . The adapter cables allow standard size BNC patch leads to be connected to equipment / cameras using the Micro BNC (HD BNC) interface.

The Micro BNC (HD BNC) can easily be confused with the DIN 1.0/2.3 range of connectors.

The connectors are a similar size. The main difference is that the  Micro BNC (HD BNC) is a Bayonet lock style connector and the DIN 1.0/2.3 connector is a push/pull style connector.

MICRO BNC VS DIN 1.0 - 2.3 CONNECTORS.pdf

Stock code CAS1803
Cable TypeBELDEN 1855A
Frequency RangeDC-6GHz
Connector 'A'RA MICRO BNC PLUG
Connector 'B'HD-SDI BNC PLUG
Options
  £13.47
Increase Quantity
Decrease Quantity
  £13.55
Increase Quantity
Decrease Quantity
  £13.84
Increase Quantity
Decrease Quantity
  £14.21
Increase Quantity
Decrease Quantity
  £14.58
Increase Quantity
Decrease Quantity
From £13.47

If you can't find the Product or Cable Assembly you are looking for on our website, please contact our Sales team who will be able to offer a solution.

 Please note that all Prices (£) are Ex VAT and Delivery Charges

Every effort is made to ensure the accuracy of the information provided on this website. However Coax Solutions Ltd accepts no liability for mis-application of any products as a result of errors, and may alter product design and specification without notice.
