Micro BNC to 4K UHD BNC Jack Patch Lead

Micro BNC to 4K UHD BNC Jack Patch Lead
Information
Technical
Accessories

Introduction

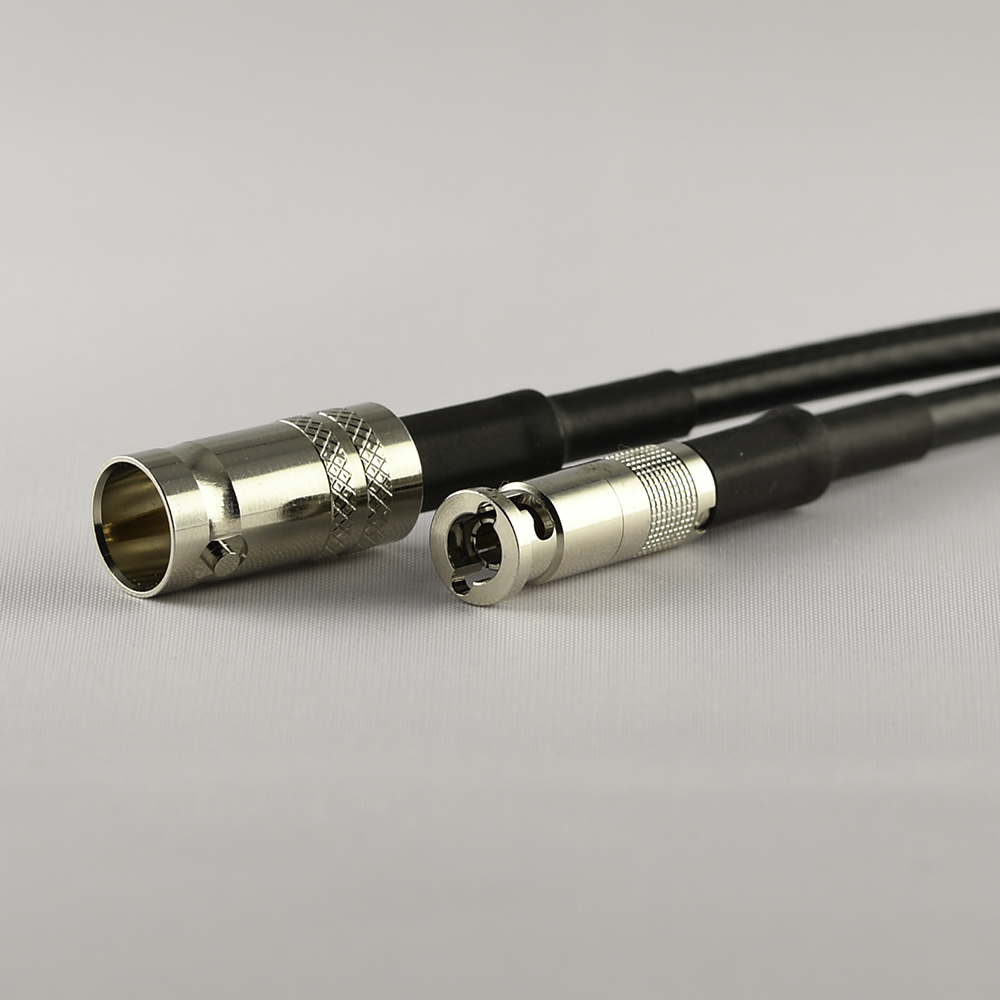

Micro BNC (HD BNC) to 4K UHD BNC Jack Adapter cable (Belden 4855R video cable)

Micro BNC (HD BNC) adapter cables suitable for 4K UHD and HD-SDI applications. The adapter cables allow standard size BNC patch leads to be connected to equipment / cameras using the Micro BNC (HD BNC) interface.

The Micro BNC (HD BNC) can easily be confused with the DIN 1.0/2.3 range of connectors.

The connectors are a similar size. The main difference is that the  Micro BNC (HD BNC) is a Bayonet lock style connector and the DIN 1.0/2.3 connector is a push/pull style connector.

MICRO BNC VS DIN 1.0 - 2.3 CONNECTORS.pdf

Application

SMPTE ST 2082-1 (12 Gb/s)

SMPTE ST 424  (HD 3G-SDI) (1080P)

SMPTE ST 292  (HD 1.5G-SDI)

Technical  Information

Belden 4855R  4855R data sheet 31-1-20.pdf

Summary

  • Adaptor cable
  • Micro BNC (HD BNC)
  • 4K UHD BNC Plug
  • 4K UHD BNC Jack
  • Belden 4855R Precision Video cable (12GHz)

Options

  • Alternative Cable lengths
  • Labelling
Stock code CAS1719
Cable TypeBelden 4855R
Impedance75 Ohm
Frequency RangeDC-12GHz
Connector 'A'MICRO BNC (HD BNC) PLUG
Connector 'B'BNC JACK 4K UHD
ColourBLACK
Options
  £15.14
Increase Quantity
Decrease Quantity
  £16.09
Increase Quantity
Decrease Quantity
  £17.05
Increase Quantity
Decrease Quantity
  £18.00
Increase Quantity
Decrease Quantity
From £15.14
