Description

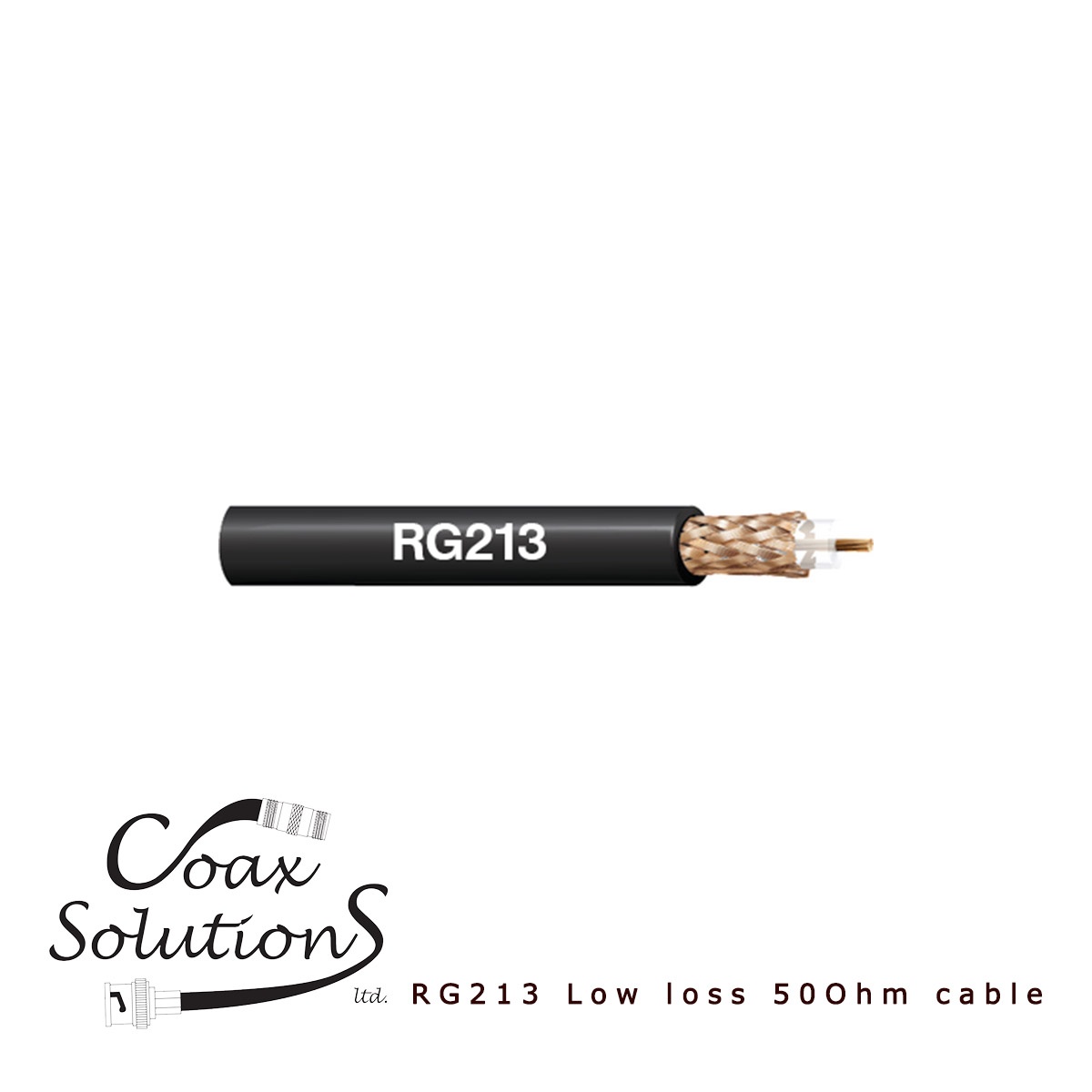

RG213 Flexible Low Loss 50 Ohm coax cable.

Supplied as cut lengths - min order is 1M

Mechanical Characteristics & Materials

Inner conductor: 7/0.75mm Plain Annealed Copper

Dielectric: Solid Polyethylene Insulation (7.2mm)

Screen: Copper Clad Aluminium (CCA) braid (coverage >95%)

Sheath: Black PVC (10.3mm)

Electrical Characteristics

DC Resistance inner conductor @20Deg C   <6.17 Ohm/Km

Characteristic impedance: 50+/- 3 Ohm

Capacitance: 104 pF/m (nominal)

Velocity ratio: 0.66

Attenuation (dB 100m @20 Deg C)             50MHz       <5.50

                                                                     100MHz     <8.00

                                                                     400MHz     <17.80

                                                                     1000MHz   <31.80

Environmental

Storage/Operating Temperature: -15Deg C to +70Deg C

Minimum Installation Temperature: -5Deg C

Typical RG213 Coaxial Connectors

BNC. TNC. N TYPE. UHF.

Applications

Low Loss General HF & VHF Antenna connections. Data transmission. Commercial Broadcast. Telecomms.

Links

RG213 Cable Assemblies

RG213 Coaxial Connectors

RG213 Crimp Tools

Stock code RG213U-M
Impedance50 Ohm
ColourBlack
Conductor7/0.75 Cu
Dielectric7.20mm Solid PE
Screen (1)CCA >95% Coverage
Jacket10.30mm PVC
Quantity:Increase QuantityDecrease Quantity
£1.22
