RG58CU-Mil Spec -100M

Description

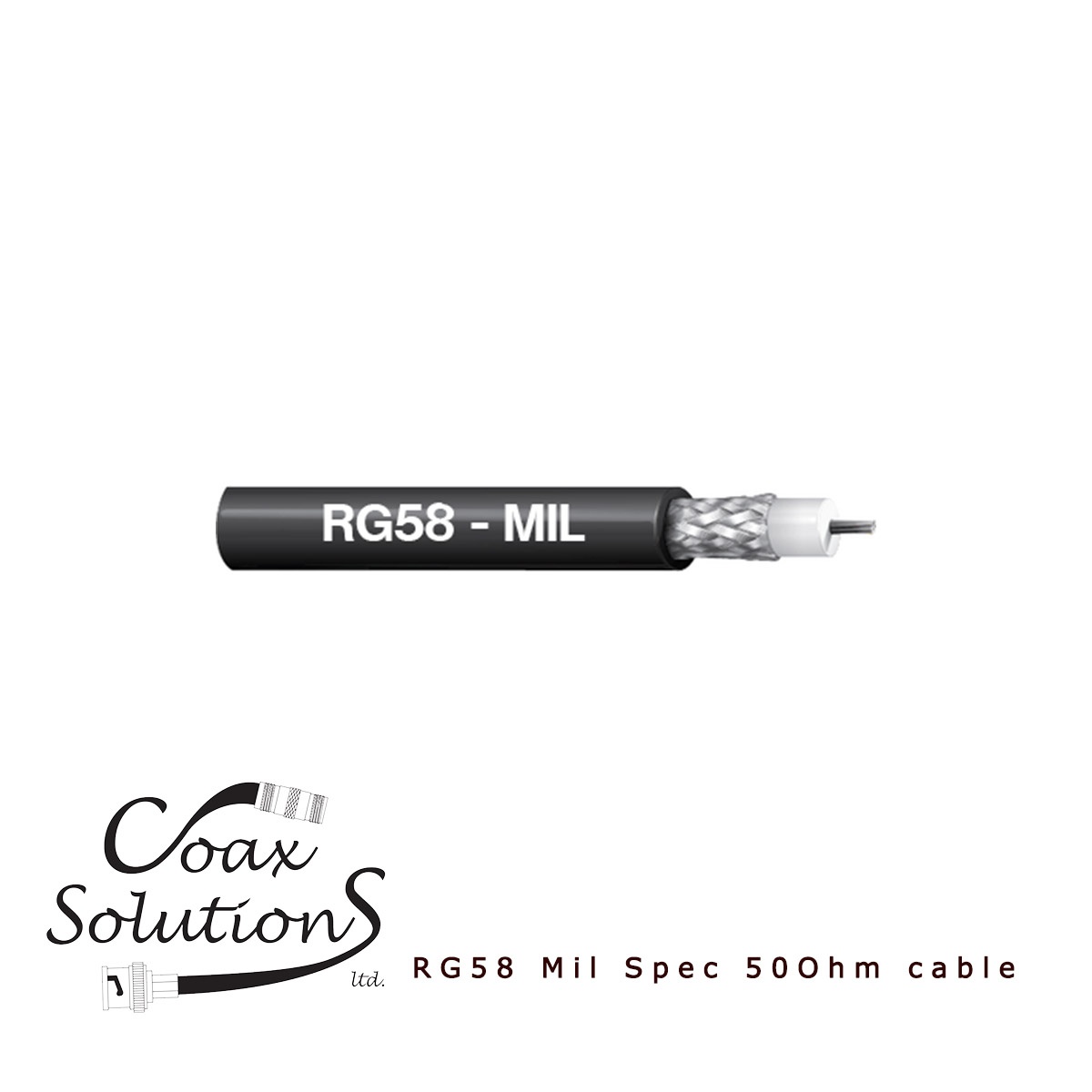

RG58 CU (MIL-C-17) Flexible ,50 Ohm coax cable

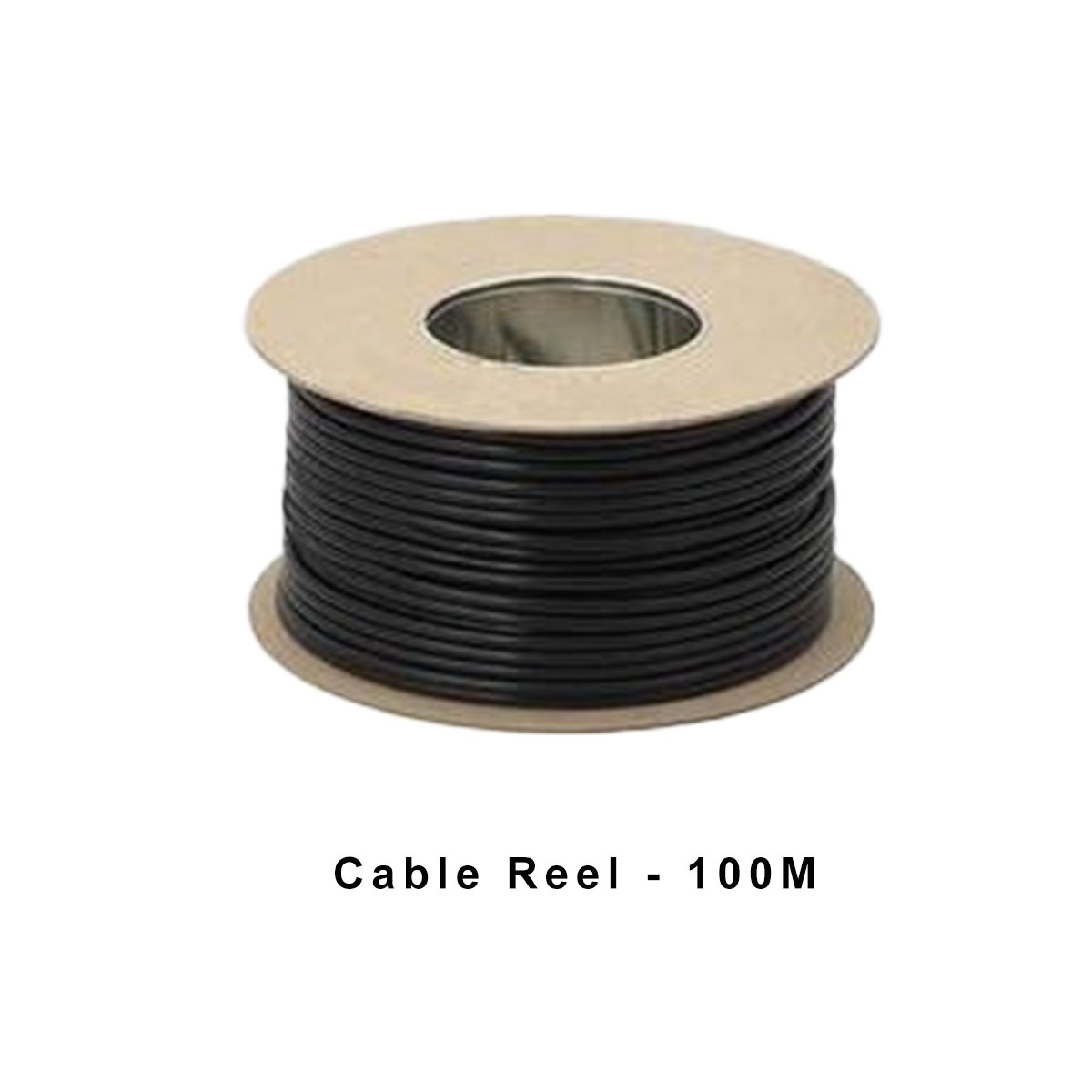

Supplied on 100M Reel

Mechanical Characteristics & Materials

Inner conductor: 19/0.18mm Tinned Annealed Copper

Dielectric: PE insulation (2.95mm)

Screen 1: Tinned Copper wire Braid

Sheath: Black PVC (5.00mm)

Electrical Characteristics

DC Resistance inner conductor @20Deg C   40.7 Ohm/Km

Characteristic impedance: 50+/- 3 Ohm

Capacitance: 100pF/m (nominal)

Velocity ratio: 0.66

Attenuation (dB 100m @20 Deg C)                50MHz     <13.10

                                                                     100MHz     <21.10

                                                                      400MHz    <55.80

                                                                     1000MHz   <39.50

Environmental

Storage/Operating Temperature: -15 to +70Deg C

Minimum installation temperature: -5DegC

Typical RG58 CU (MIL-C-17) Coaxial Connectors

BNC.TNC.N type. SMA. FME

Applications

Low power RF. VHF antenna cable. HAM Radio. Data transmission. Commercial broadcast. 2way radio comms. Marine VHF. WLAN antenna.
