Shop | Coaxial Connectors | BNC Connectors | BNC Crimp plugs | BNC Crimp plug SDV-S, Image 360

BNC Crimp plug SDV-S, Image 360

BNC Crimp plug SDV-S, Image 360
Information
Technical
Accessories

Description

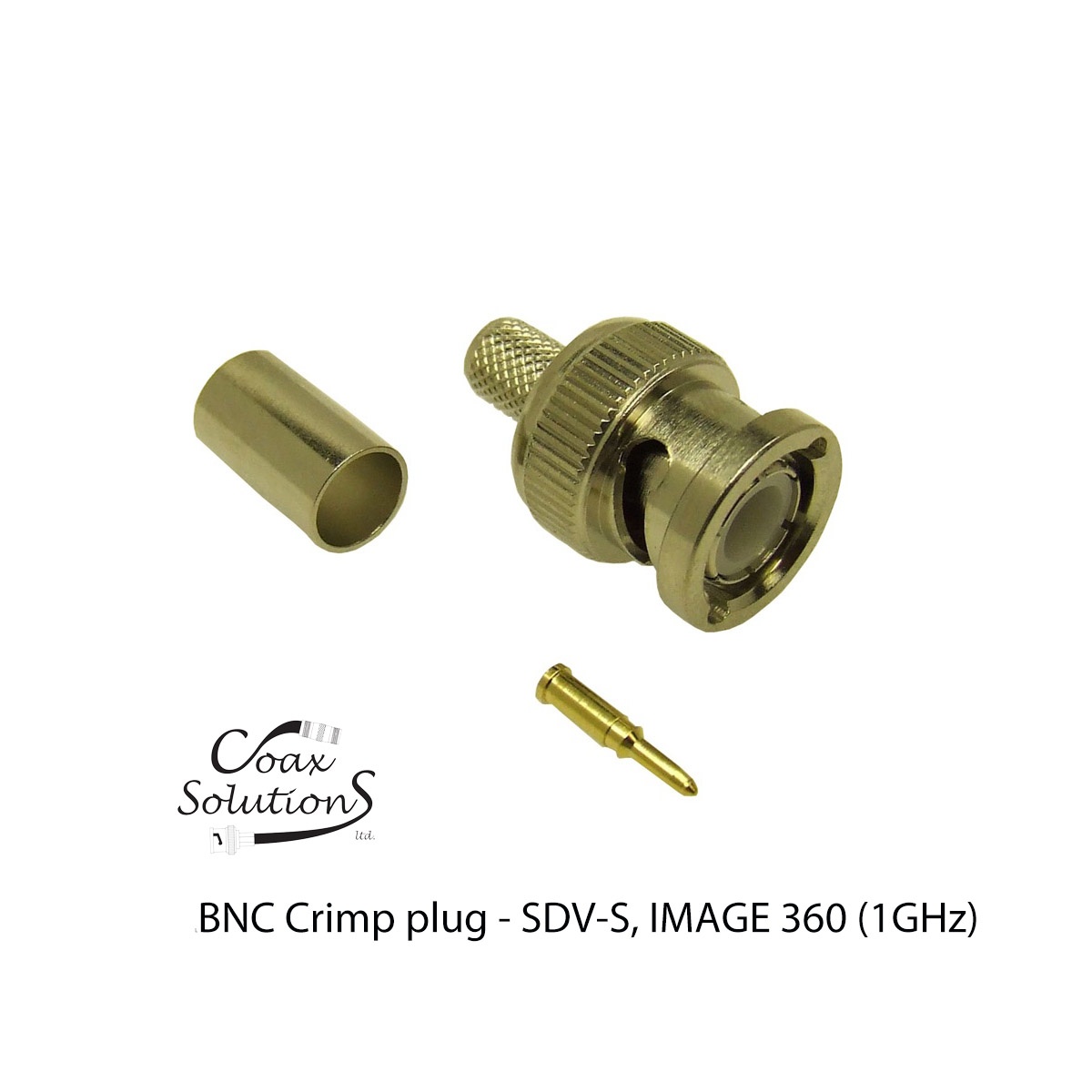

BNC crimp plug SDV-S. Bayonet locking coaxial connector.

BNC 75ohm straight crimp plug (male) made IAW MIL-C-39012

Suitable Coax Cables

SDV-Small, Belden 1855A Image 360, & Equivalent cables

Material

Pin - Brass - Gold plated

Ferrule - Brass - Nickel plated

Body - Zinc Alloy - Nickel plated

Insulator - Delrin

Tooling

Pin - 0.068" (1.72mm)

Ferrule - 0.213" (5.41mm)

Crimp tool CRT1001

Applications

Broadcast. SDI applications (max 1Ghz)

See alternative BNC1050069HD - HD-SDI BNC crimp plug 12GHz

Stock code BNC1050069
Contact Hex 1.72mm
Ferrule Hex 5.41mm
Crimp ToolCRT1001/1001A
Cable TypeSDV-S, Image 360
Impedance75Ohms
Body PlatingNickel
Contact PlatingGold
InsulatorDelrin
Frequency RangeDC-1GHz
Precision BNC Plug Belden 1855A, 1855ENH, Image 360, HD600
Precision BNC Plug Belden 1855A, 1855ENH, Image 360, HD600 £1.10
CRT1001A
CRT1001A £21.00
Strain Relief Boot 01- RG58
Strain Relief Boot 01- RG58 £0.12
Belden 1855A Cable Assembly - 1M
Belden 1855A Cable Assembly - 1M £4.89
Belden 1855A Cable Assembly - 10M
Belden 1855A Cable Assembly - 10M £13.74

Call for current price and availability

If you can't find the Product or Cable Assembly you are looking for on our website, please contact our Sales team who will be able to offer a solution.

 Please note that all Prices (£) are Ex VAT and Delivery Charges

Every effort is made to ensure the accuracy of the information provided on this website. However Coax Solutions Ltd accepts no liability for mis-application of any products as a result of errors, and may alter product design and specification without notice.
