Precision BNC Plug Belden 1794A, 4794R

Precision BNC Plug Belden 1794A, 4794R
Product image

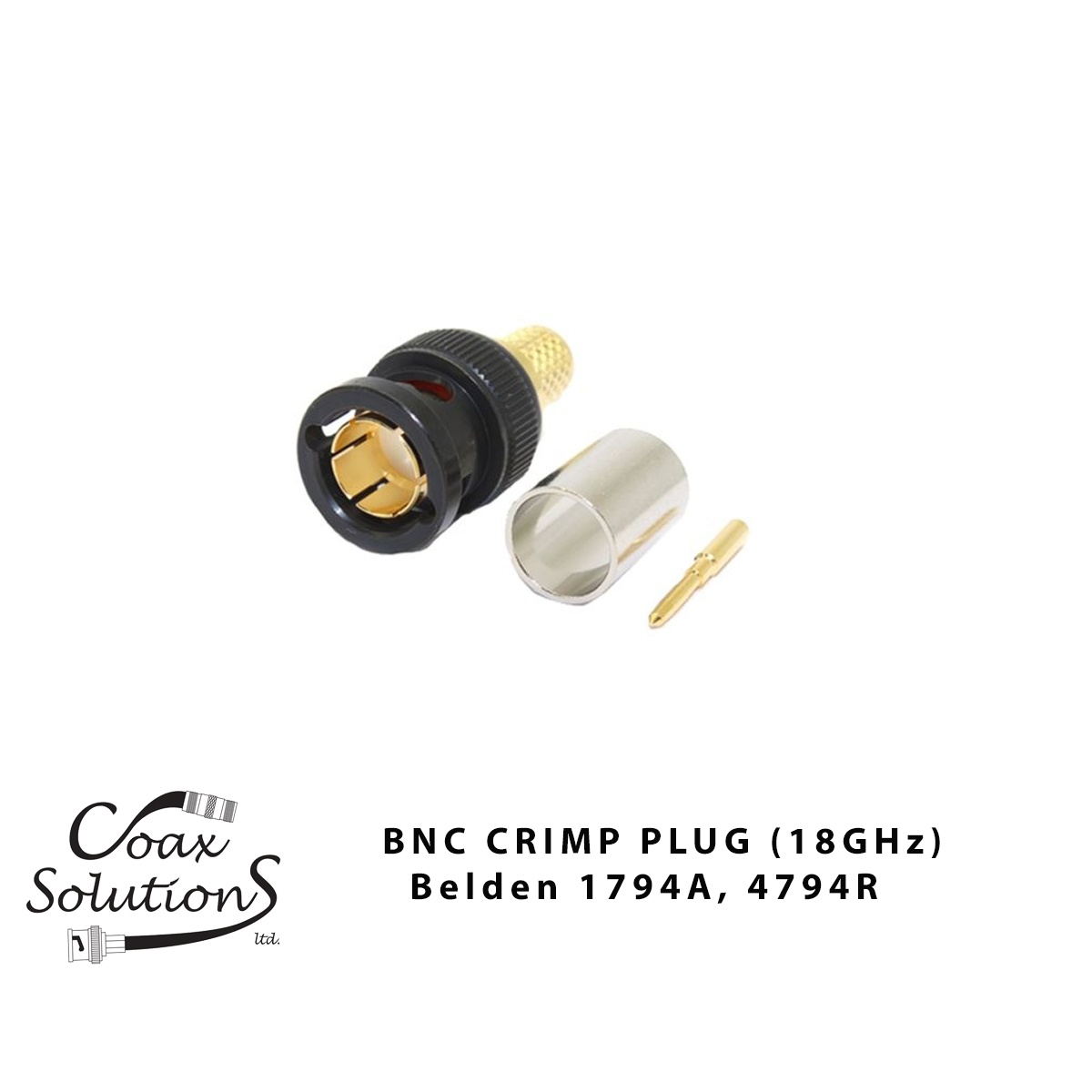

A Precision BNC Plug designed specifically for Broadcast applications, meeting the requirements of the Serial digital Interface (SDI) and related High Definition Serial digital Interface (HD-SDI) and 4K UHD specifications.

These Precision BNC plugs offer a true 75 Ohm impedance and are suitable for use with Belden 1794A and Belden 4794R and other similar sized cables. They give excellent VSWR and return loss figures.

We also offer pre terminated Belden 1794A and 4794R Patch leads and a bespoke cable assembly service for all our precision BNC plugs.

  • Frequency range: DC to 18GHz
  • Impedance: 75 Ohm
  • Temperature range: -55 to +155 Deg C
  • Body: Brass, Gold plated
  • Coupling nut: Brass, Black Nickel plated
  • Dielectric: PTFE
  • Ferrule: Brass, Nickel plated
  • Pin: Brass, Gold plated

 Suitable cables: Belden 1794A, Belden 4794R and similar sized alternatives.

Stock code BNC1050036HD
Contact Hex 1.72mm
Ferrule Hex 8.23mm
Crimp ToolCRT1022
Cable TypeBelden 1794A, Belden 4794R
Impedance75 Ohm
Body PlatingGold
Contact PlatingGold
Frequency RangeDC-18GHz

Call for current price and availability
