Precision BNC Plug Belden 4505R

Precision BNC Plug Belden 4505R
Product image

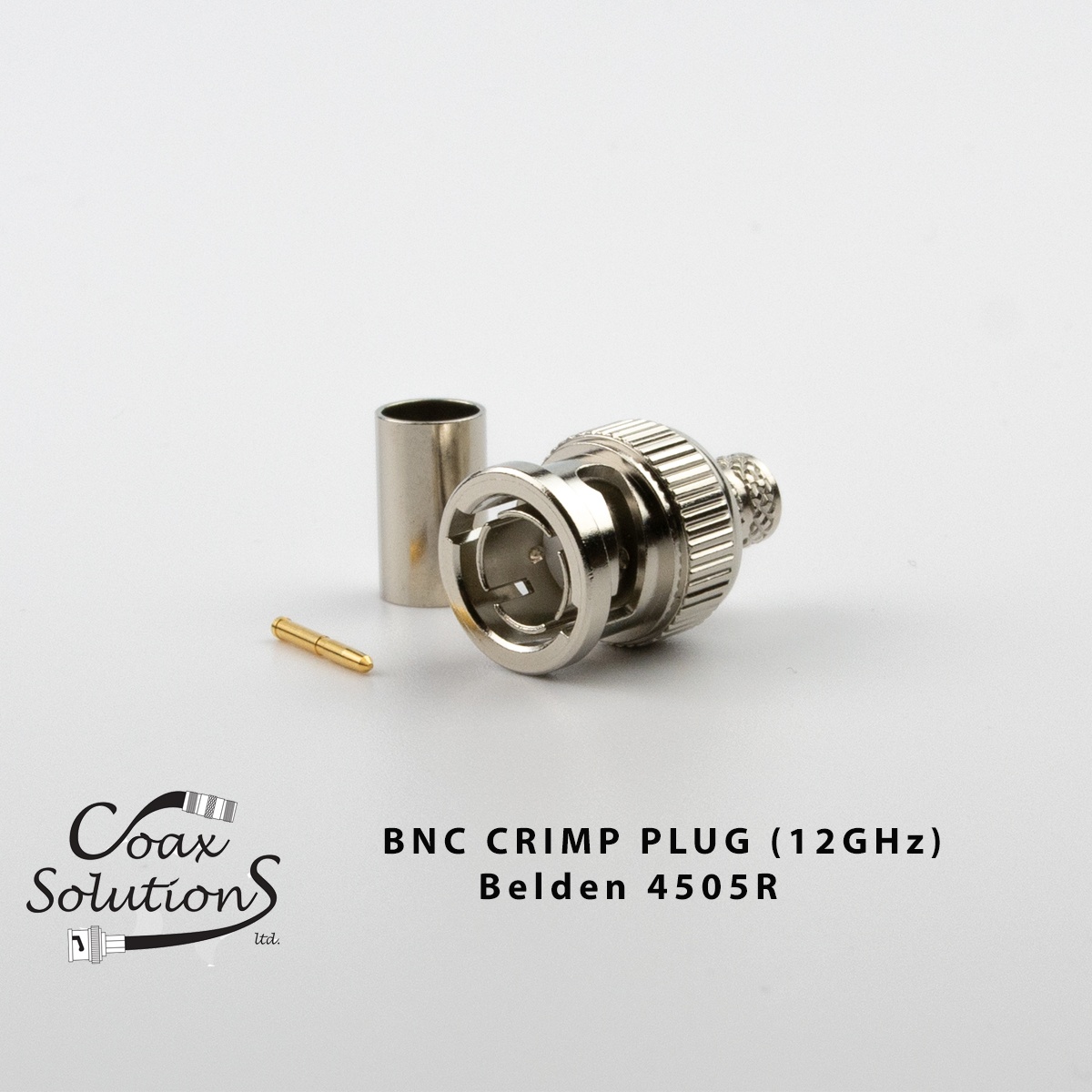

A Precision BNC Plug designed specifically for Broadcast applications, meeting the requirements of the Serial digital Interface (SDI) as well as the related High Definition Serial digital Interface (HD-SDI) and 4K UHD specifications.

These Precision BNC plugs offer a true 75 Ohm impedance and are suitable for use with and other similar sized cables. They give excellent VSWR and return loss figures.

We also offer pre terminated  Belden 4505R Patch leads and a bespoke cable assembly service for all our precision BNC plugs.

  • Frequency range: DC to 12GHz
  • Impedance: 75 Ohm
  • Temperature range: -55 to +85 Deg C
  • Working voltage: 500V RMS maximum
  • Body: Zinc Alloy, Nickel plated
  • Coupling nut: Zinc alloy, Nickel plated
  • Dielectric: Delrin
  • Ferrule: Brass, Nickel plated
  • Pin: Brass, Gold plated

 Suitable cables: Belden 4505R and similar size alternatives

Stock code BNC1050082HD
Contact Hex 1.07mm (Sq)
Ferrule Hex 6.48mm
Crimp ToolCRT1021
Cable TypeBelden 4505R
Impedance75 Ohm
Body PlatingNickel
Contact PlatingGold
Frequency RangeDC-12GHz
Quantity:Increase QuantityDecrease Quantity
