Inflatable Antenna - HAM

Inflatable Antenna - HAM
Product image
Product image
Product image
Information
Technical
Accessories

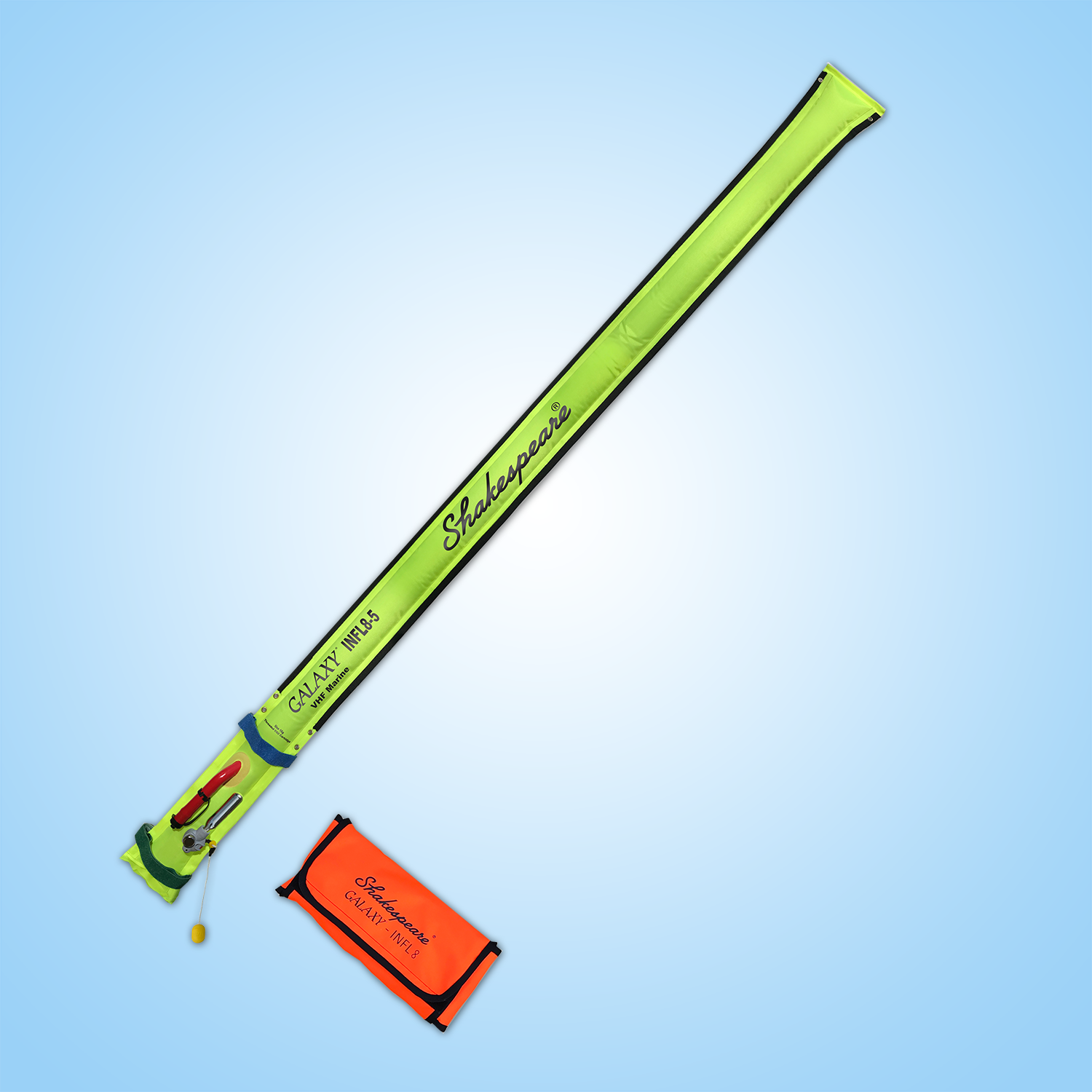

The GALAXY INFL8-HAM is an inflatable end feed 3db Dual Band antenna for HAM radio applications (144MHz-148MHz and 430MHz-440MHz))

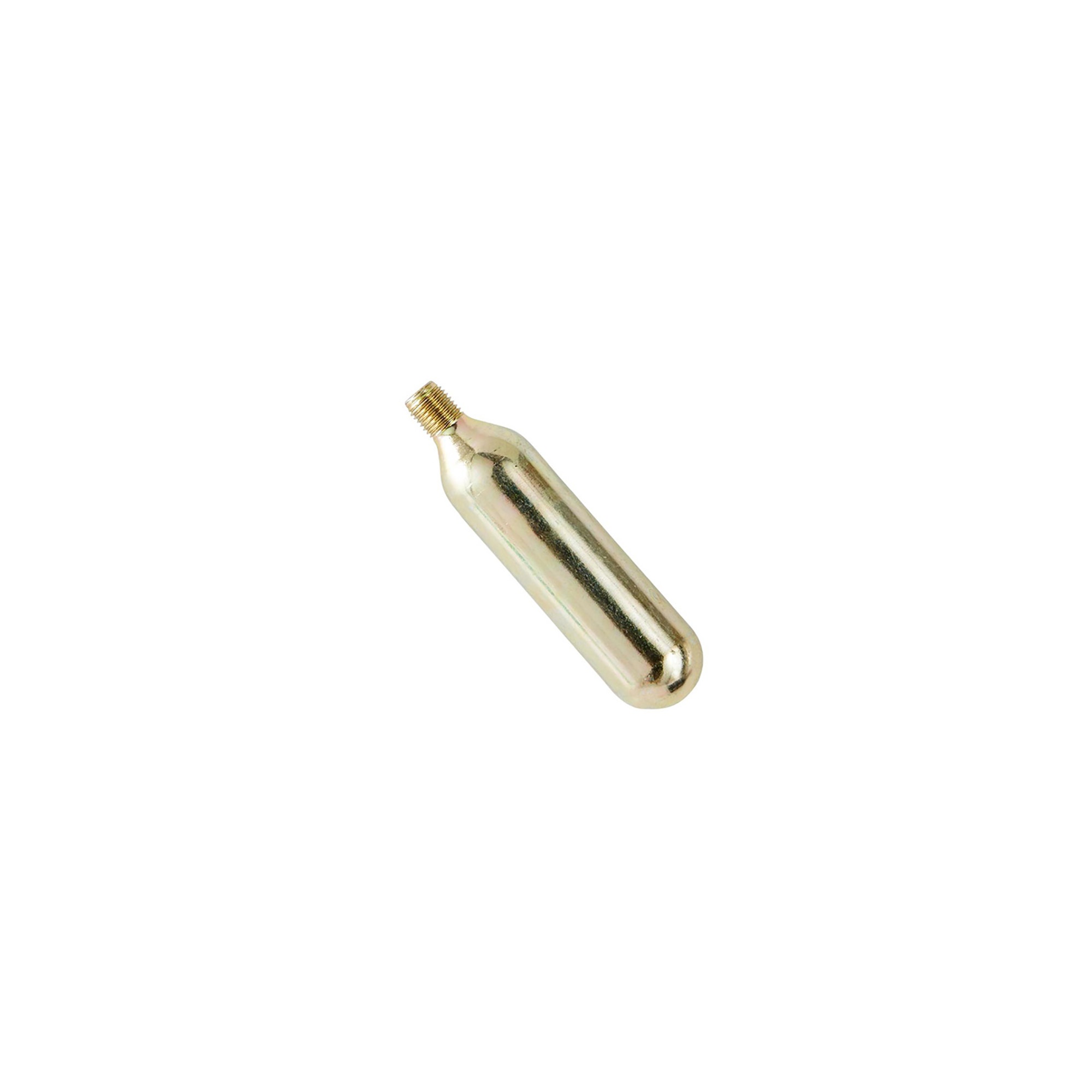

The antenna can be easily deployed either via a CO2 cartridge or manual inflation tube. It inflates to 1.6M to offer a full 3db antenna.

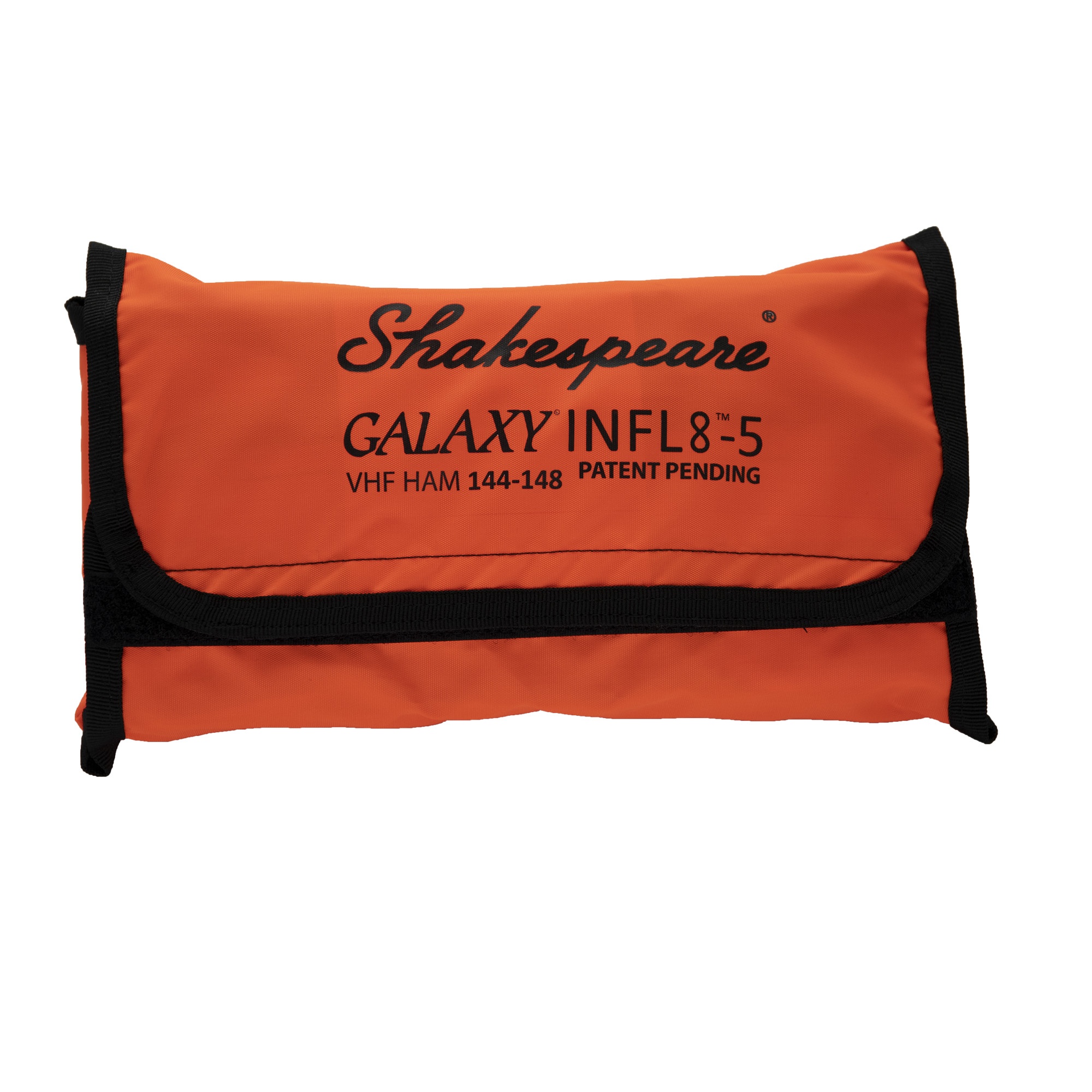

Thanks to its inflatable design, the antenna can be deflated and stowed away safely in its easy to spot storage bag until needed again.

The antenna can be mounted with its Hook and Loop straps allowing for quick and easy installation. The antenna also features grommets on the top and bottom to facilitate hanging and securing if required.

The antenna if fitted with a PL 259 male connector as standard.

Note: When manually inflated, the product does not inflate to be rigid enough to be free standing. Manual inflation is only advised if the antenna can be supported top and bottom

  • Dual Band (70cm and 2m)
  • 144MHz-148MHz and 430MHz-440MHz
  • End Feed 3db antenna
  • Inflatable
  • PL 259 Male connector
Data Sheet here:  GALAXY-INFL8-HAM dual band.pdf
Stock code INFL8-HAM
Cable TypeRG174
Impedance50 OHM
Frequency Range144MHz-148MHz and 430MHz-440MHz
Connector 'A'PL259 Male
Quantity:Increase QuantityDecrease Quantity
£83.00
