RG58 (TCCA Screen) - Cut Length

RG58 (TCCA Screen) - Cut Length
Product image
Product image
Information
Technical
Accessories

Description

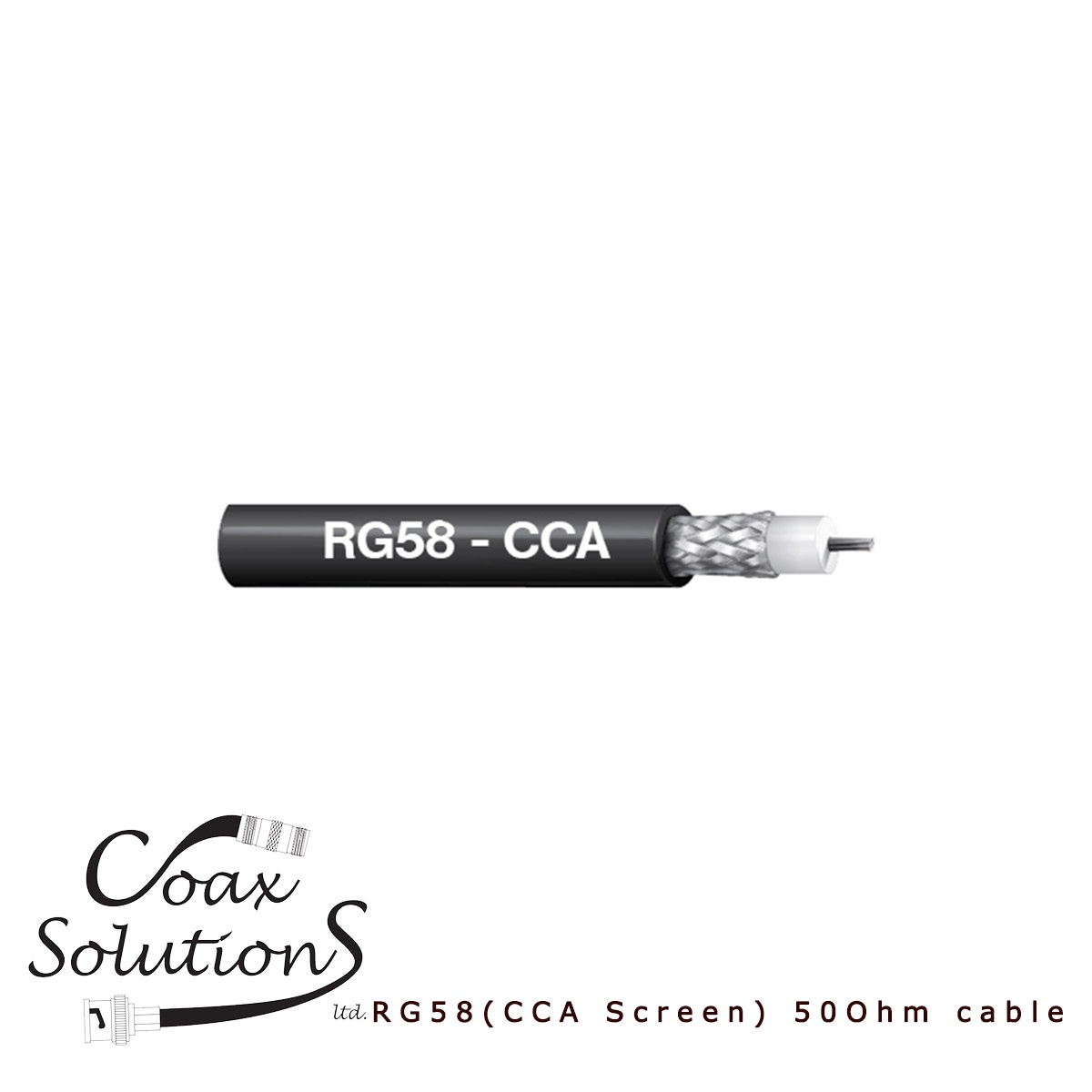

RG58 Flexible (TCCA Screen) 50 Ohm coax cable

Supplied as cut lengths (min 1M)

Mechanical Characteristics & Materials

Inner conductor: 19/0.18 Tinned Annealed Copper (0.90mm)

Dielectric: Solid Polyethylene Insulation (2.95mm)

Screen: Tinned Copper Clad Aluminium (TCCA) braid (coverage >85%)

Sheath: Black PVC (5.00mm)

Electrical Characteristics

DC Resistance inner conductor @20Deg C   <40.7 Ohm/Km

Characteristic impedance: 50+/- 3 Ohm

Capacitance: 100 pF/m (nominal)

Velocity ratio: 0.66

Attenuation (dB 100m @20 Deg C)             10MHz       <4.50

                                                                     200MHz     <21.60

                                                                     400MHz     <30.50

Environmental

Storage/Operating Temperature: -15Deg C to +70Deg C

Minimum Installation Temperature: -5Deg C

Typical RG58 Coaxial Connectors

BNC. TNC. N TYPE. UHF. SMA. FME

Applications

Low power RF.  VHF Antenna connections. HAM Radio. Data transmission. Commercial Broadcast. 2 way radio comms. Marine VHF. WLAN antenna.

Links

RG58 Cable Assemblies

RG58 Coaxial Connectors

RG58 Crimp Tools

RG58 Strain Relief Boots

Stock code RG58CCA-M
Cable TypeRG58 (TCCA)
Impedance50 Ohm
ColourBlack
ConductorSnCu 19/0.18mm
DielectricSolid PE (2.95mm)
Screen (1)TCCA
JacketPVC (5.00mm)
Reel SizeCUT LENGTH
Quantity:Increase QuantityDecrease Quantity
£0.31
