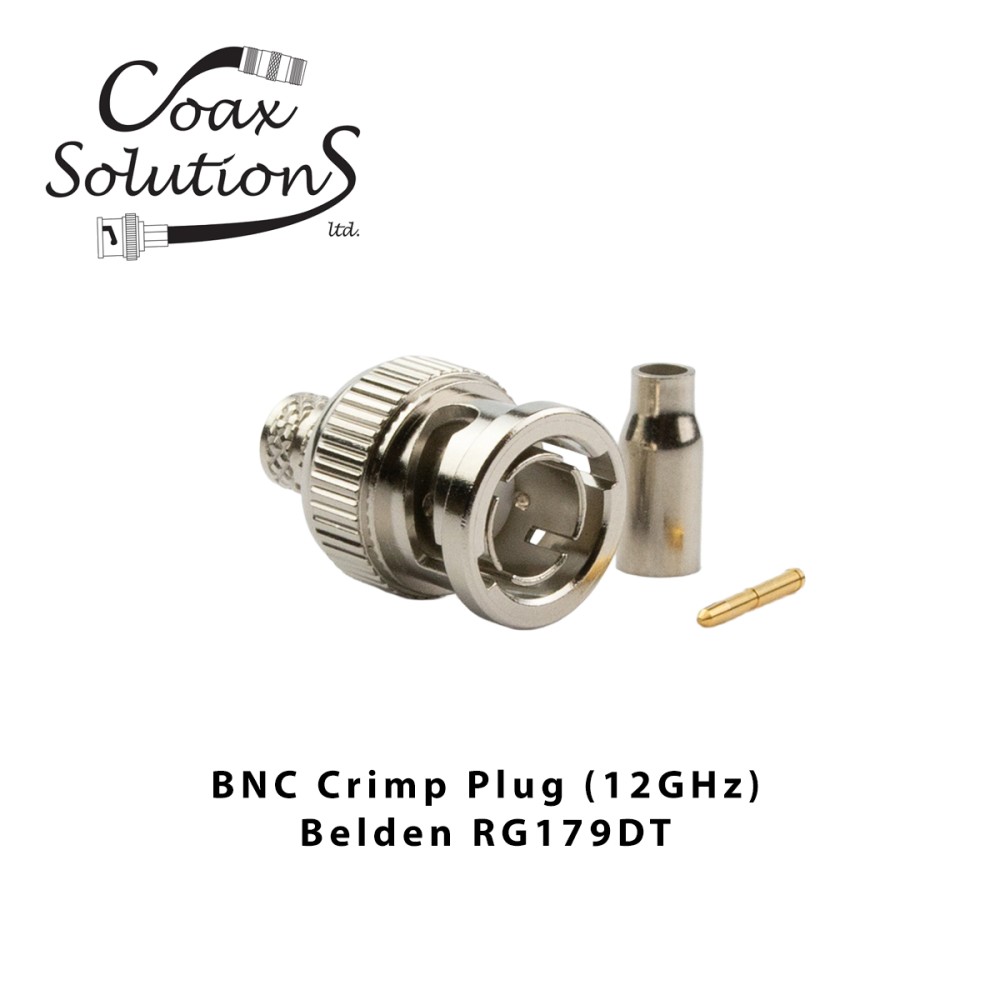

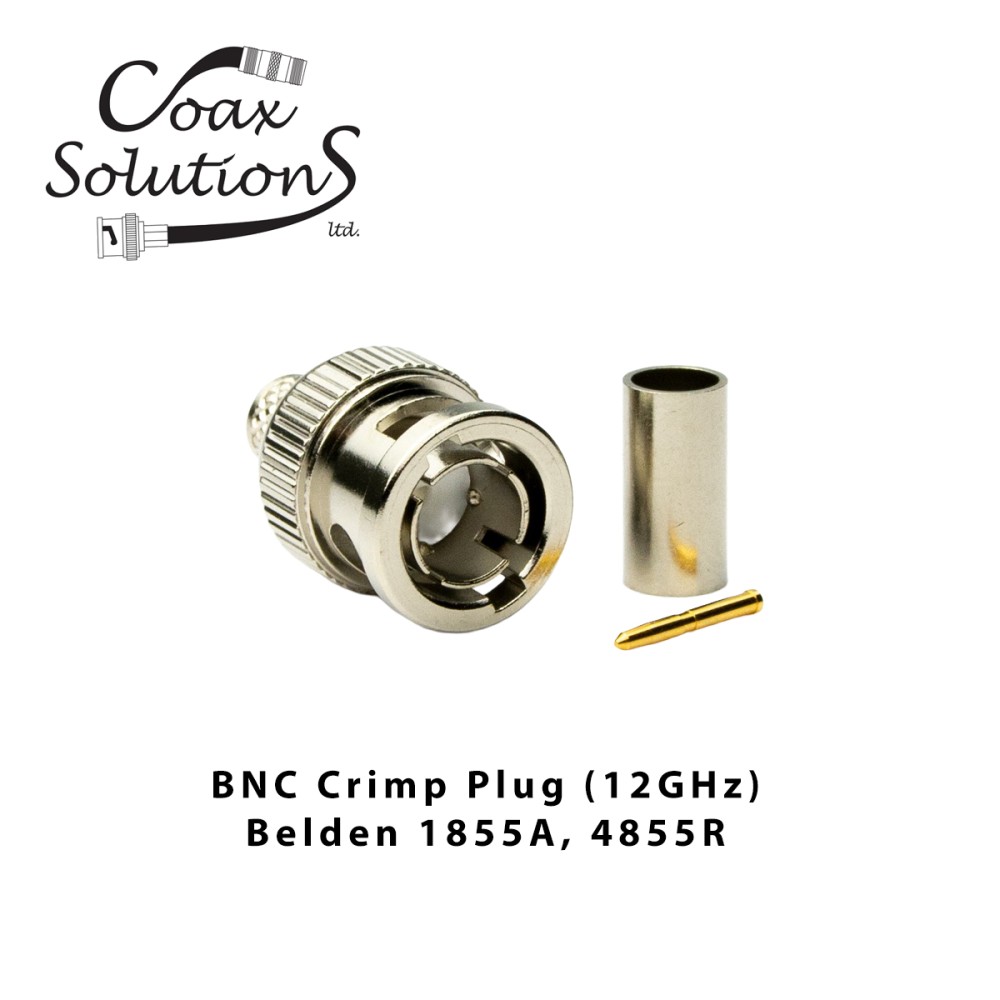

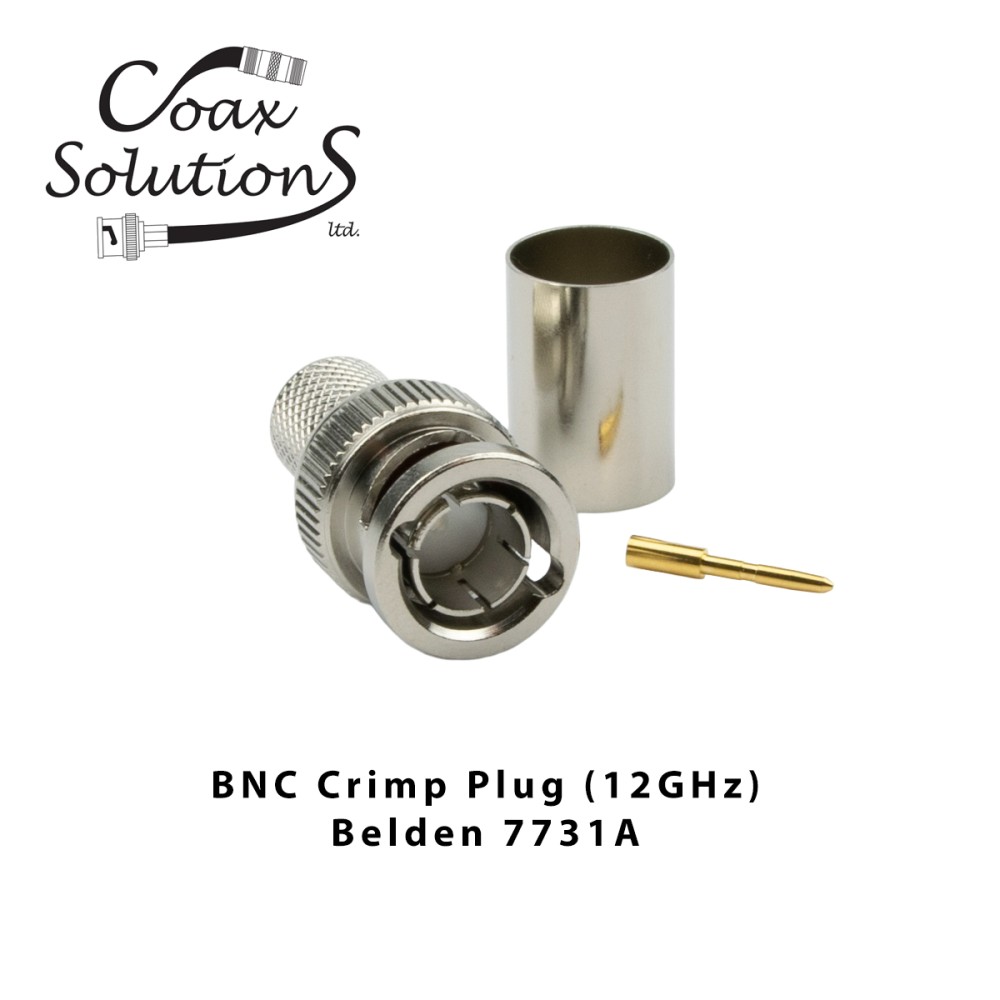

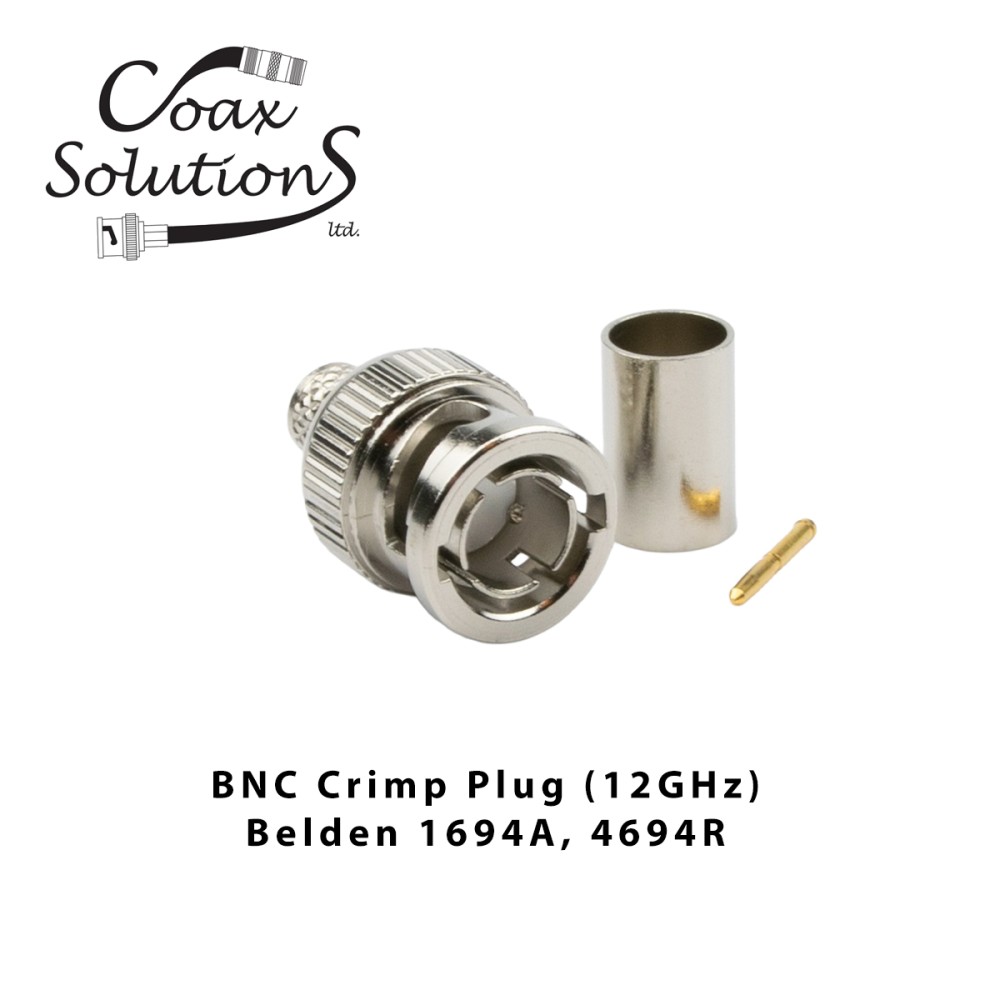

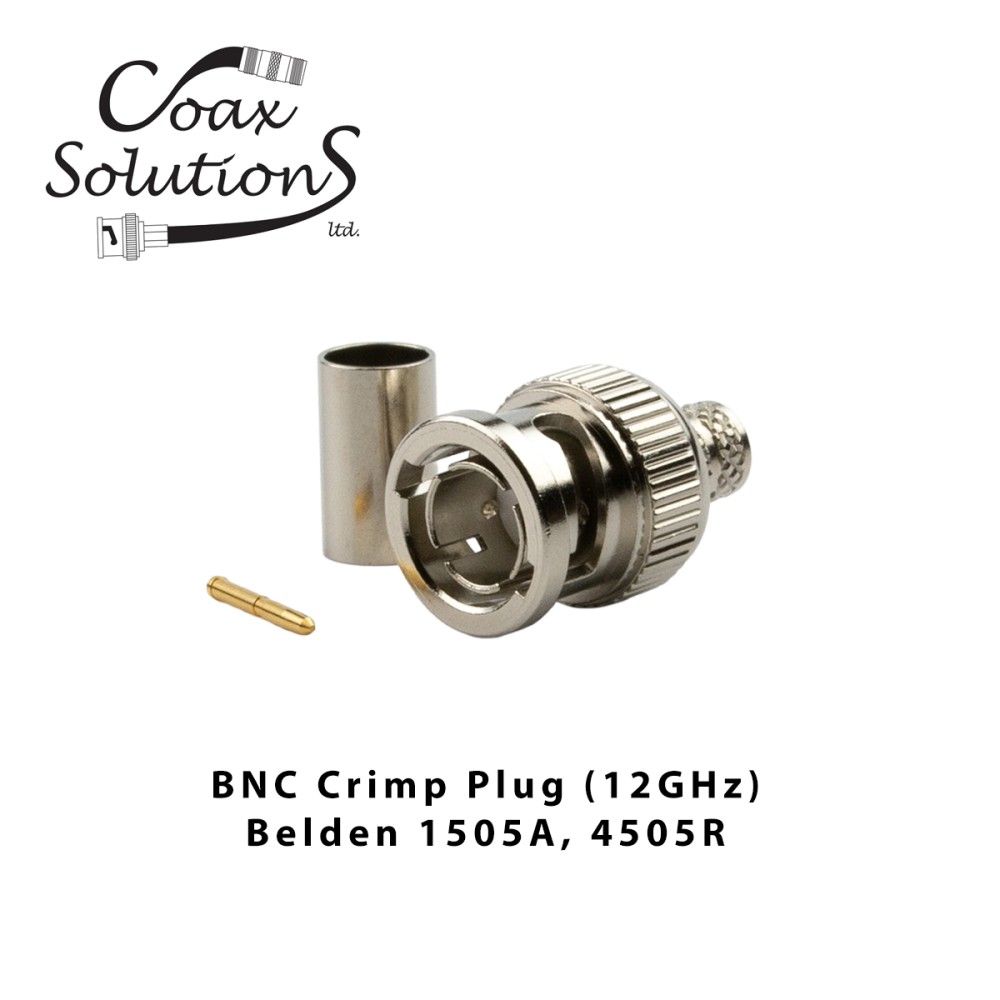

4K UHD BNC Plugs

A range of Precision HD-SDI / 4K UHD BNC Plugs designed specifically for Broadcast applications, meeting the requirements of the Serial digital Interface and the related High Definition Serial digital Interface requirements.

Our Precision 4K UHD BNC plugs offer a True 75 Ohm impedance and have been tested with a selection of Belden and Image type cables giving excellent VSWR and return loss figures. These BNC plugs are suitable for all 3 GHz SDI and HD-SDI applications as well as the newer 6GHz-SDI and 12GHz-SDI requirements. They are available to suit a wide range of SDI and HD-SDI & 4K UHD cables including Belden 4855R, Belden 4505R and Belden 4694R and similar cables by other cable manufacturers.

From our Cable assembly facility in Harlow, Essex we also offer pre terminated patch leads and a bespoke cable assembly service for our Precision BNC plugs.
