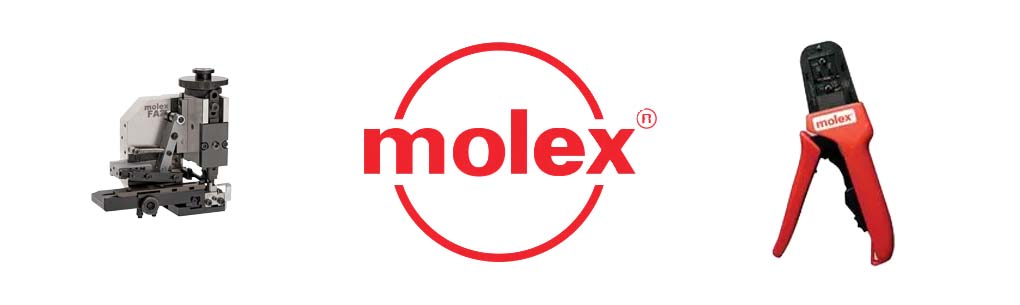

Molex Tools
Molex connectors are industry-leading interconnect solutions widely used in electronics, automotive systems, industrial equipment, medical devices, and consumer products. Known for their reliability, durability, and wide range of configurations, Molex connectors provide secure electrical connections that support everything from high-speed data transmission to power delivery in demanding environments.
As one of the world’s most trusted connector manufacturers, Molex offers an extensive portfolio, including wire-to-board, board-to-board, wire-to-wire, FFC/FPC, power connectors, and micro-miniature solutions. Their innovative designs help engineers reduce space, increase performance, and ensure long-term system reliability.
Whether you’re developing a new electronic device or maintaining an existing system, Molex connectors deliver the performance, flexibility, and safety compliance needed for modern applications. With global availability, strong engineering support, and a proven track record, Molex remains a top choice for high-quality interconnect components.

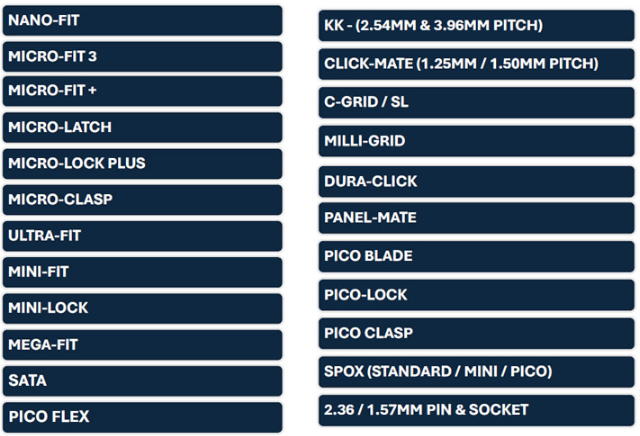

We currently have tooling available for the following Molex connector ranges.
| Terminal | AWG | Comments |
| 50058 | 28-32 | 1.25mm Single Row Female |
| 50079 | 26-28 | 1.25mm Single Row Female |
| 50061 | 28-32 | 1.25mm Board In |
| 50516 | 28-32 | 1.25mm Dual Row |
| 50125 / 50133 | 28-32 | 1.25mm Single Row Male |
| 50641 | 28-30 | 1.25mm Panelmate |
| 1854 / 1855 | 24-28 | 1.57mm Pin Socket System |
| 2189 / 2190 | 24-28 | 1.57mm Pin Socket System |
| 4559 | 24-28 | 1.57mm Pin Socket System |
| 1560 / 1561 | 18-24 | 1.57mm Pin Socket System |
| 1854 / 1855 | 24-30 | 1.57mm Pin Socket System |
| 1433 / 1434 | 24-30 | 2.36mm Pin Socket System |
| 1189 / 1190 | 14-20 | 2.36mm Pin Socket System |
| 50011 | 24-30 | 2.0mm Micro Blade |
| 50394 | 26-30 | 2.0mm Milli Grid |
| 43030 / 43031 | 20-24 | Micro-Fit 3 |
| 5556 / 5558 | 18-24 | Mini-Fit |
| 44476 / 44478 | 18-24 | Mini-Fit HCS |
| 5263 | 22-28 | 2.5mm SPOX |
| 50802 | 22-28 | 2.5mm SPOX |
| 5194 | 18-24 | 3.96mm SPOX |
| 4809 | 22-30 | 2.54mm KK |
| 2478 | 18-24 | 3.96mm Maxi KK |
| 70058 / 71851 | 24-30 | C-Grid SL Tool 69037-1148 |
| 70021 | 24-30 | C-Grid SL Pin |
| 90119 | 22-24 | C-Grid III Tool 69037-1017 |
| 90119 | 26-28 | C-Grid III Tool 69037-1018 |
| 501334(T) / 501193(G) | 28-32 | 1mm Picoclasp / 2mm Illumimate |
| 87421 | 24-30 | 1.5mm Pico SPOX |
| 43375 | 14-18 | 7.50mm SABRE |
| 50012 / 50013 | 24-28 | 2.00mm Wire To Wire Plug / Socket |
| 50147 / 50148 | 20-22 | 2.5mm Mizu-P25 |
| 50212 | 24-30 | 2.00mm Sherlock |
| 56134 | 22-28 | 2.00mm MicroClasp |
| 502381 | 26-28 | 1.25mm CLIK-Mate |
| 502438 | 22-26 | 2.00mm CLIK-Mate |
| 172160 | 18-20 | 3.96 Edge Mate |
| 172253 | 16-18 | 2.5mm Ultra-fit |
| Picoflex | 28 | Ribbon Connectors |
| 172063 | 12-16 | 5.7mm Mega-fit |
| 501334(T)/501193(G) | 28-32 | 1mm Pico-Clasp 2mm IllumiMate |
| 50058/50079 | 26-32 | 1.25mm Single row PicoBlade Female |
| 50123/50133 | 28-32 | 1.25mm Single row PicoBlade Male |
|
50061 |
28-32 |
- |
